- This retrofit supports only E60 LCI vehicles from September 2005 and up, which have KGM control unit
Pre-lci Models had no KGM control unit. And the retrofit consisted only on changing the mirror with plugs and coding the door modules accordingly
Tuto version 1 Outside auto-dip/dim/fold mirrors
Tuto version 2 Outside auto-dip/dim/fold mirrors
Door Harness Tuto Door Harness Tuto
Modifications Schema
Requirements
If you opt for mirrors with puddle lights, both mirrors must have a puddle light, otherwise a LIN miscommunication will prevent the mirrors from operating correctly
In other words, both mirrors must be identical (Same LIN microprocessor and electronics)
If you opt for mirrors with puddle lights, the KGM should be coded to activate Option S563A
References

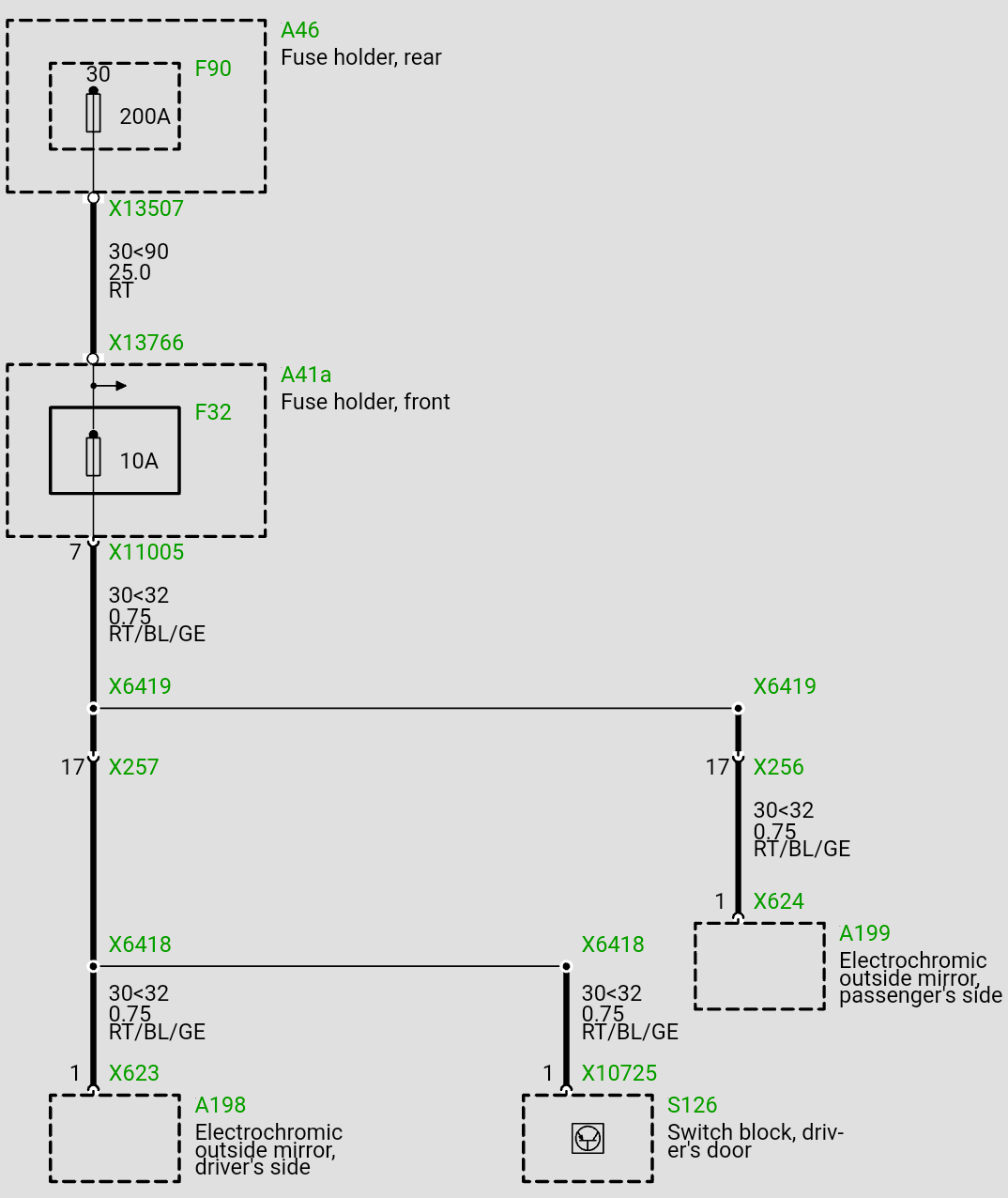

FUSE F32 SCHEMA

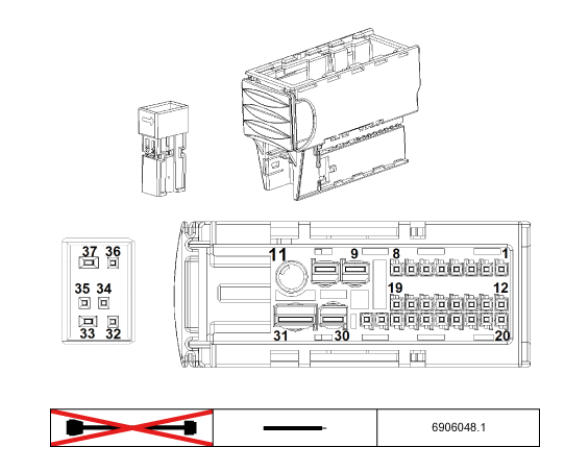

PASSENGER DOOR CONNECTOR X256 PINS

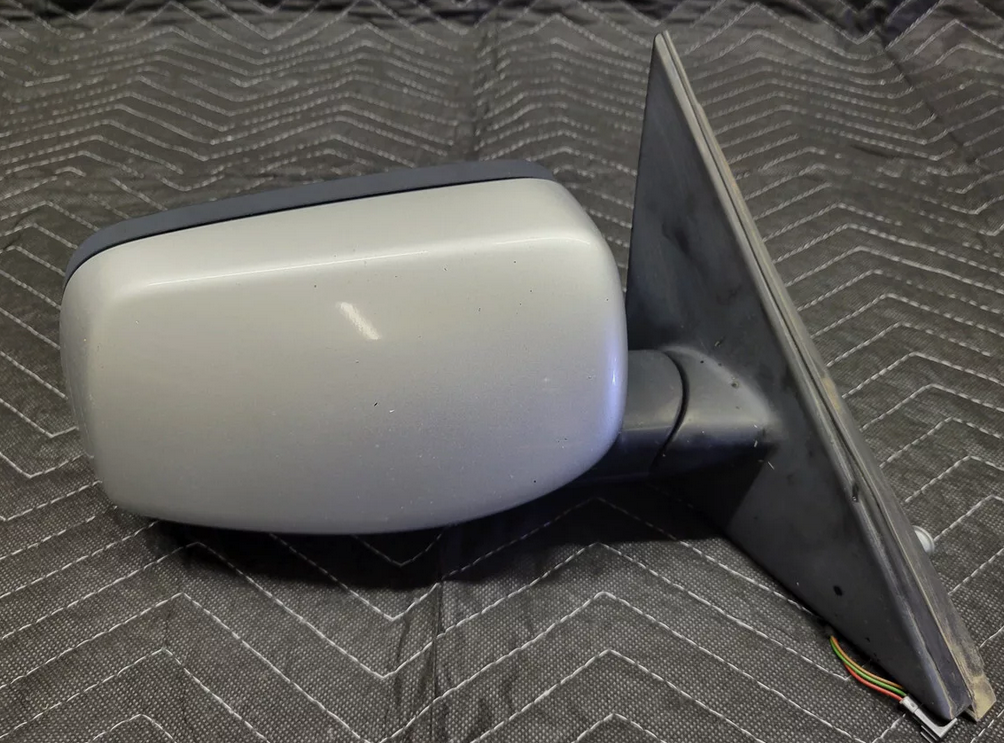

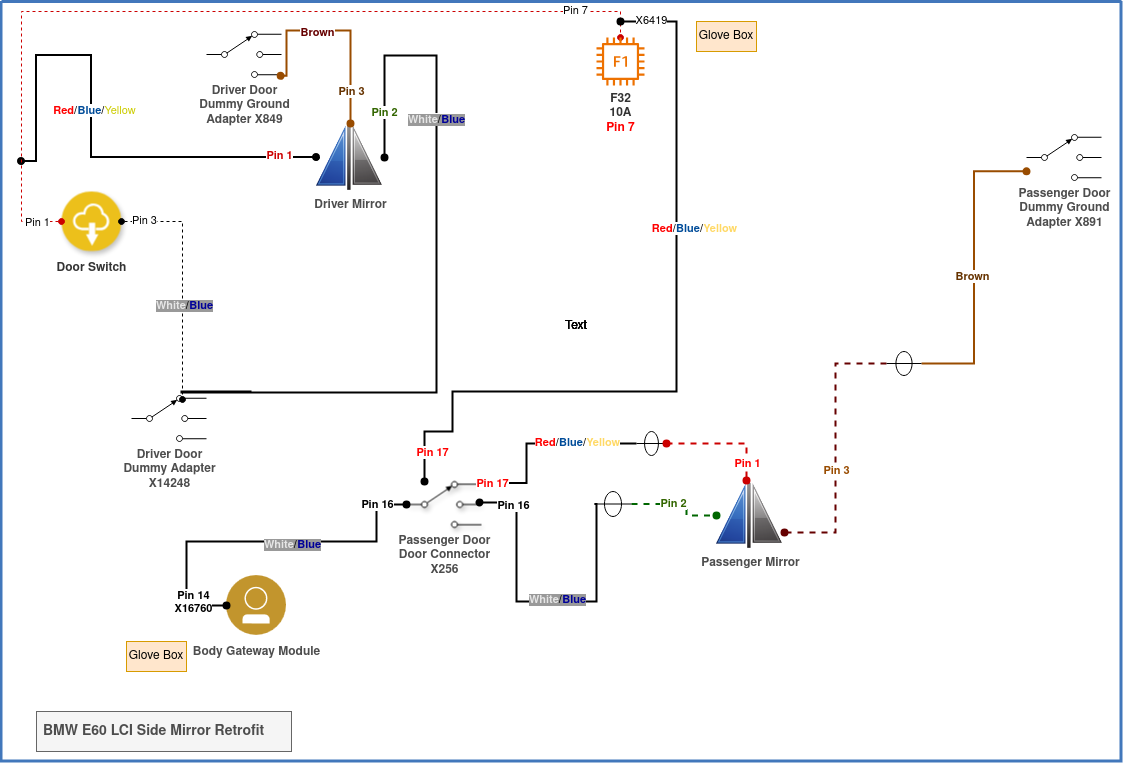

BMW E60 LCI MIRRORS
DOOR HARNESS OLD.JPG

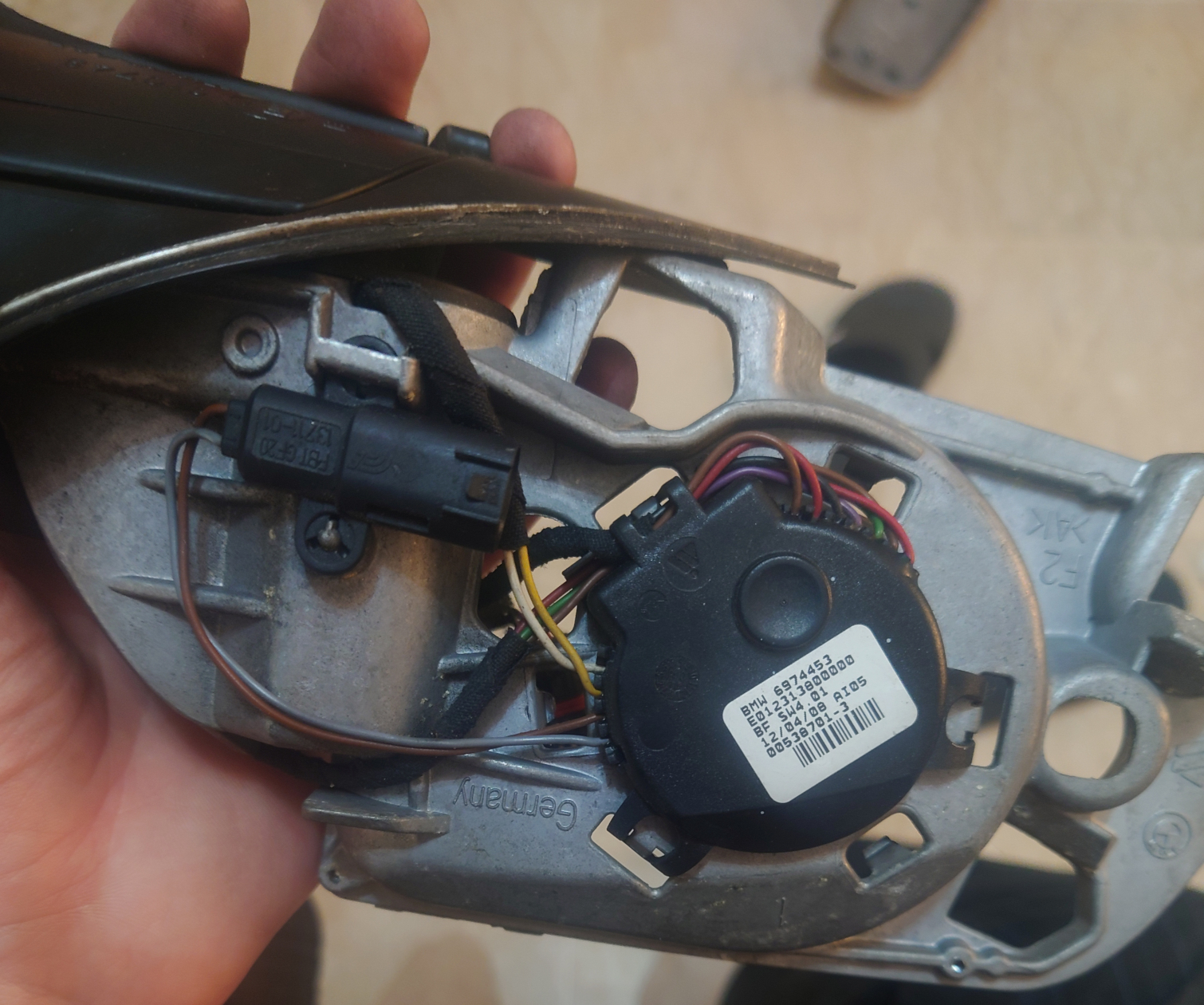

MIRROR ELETCRONICS MICROPROCESSOR

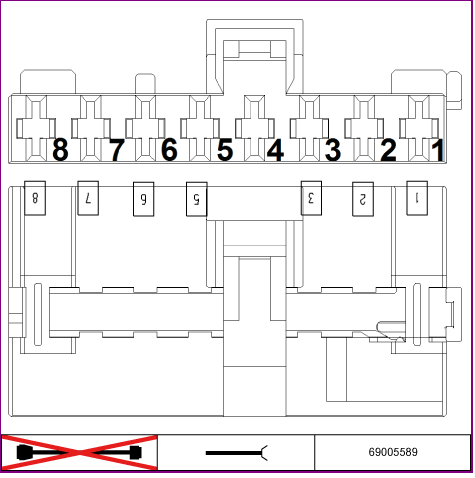

FUSE CONNECTOR X11005 PINS

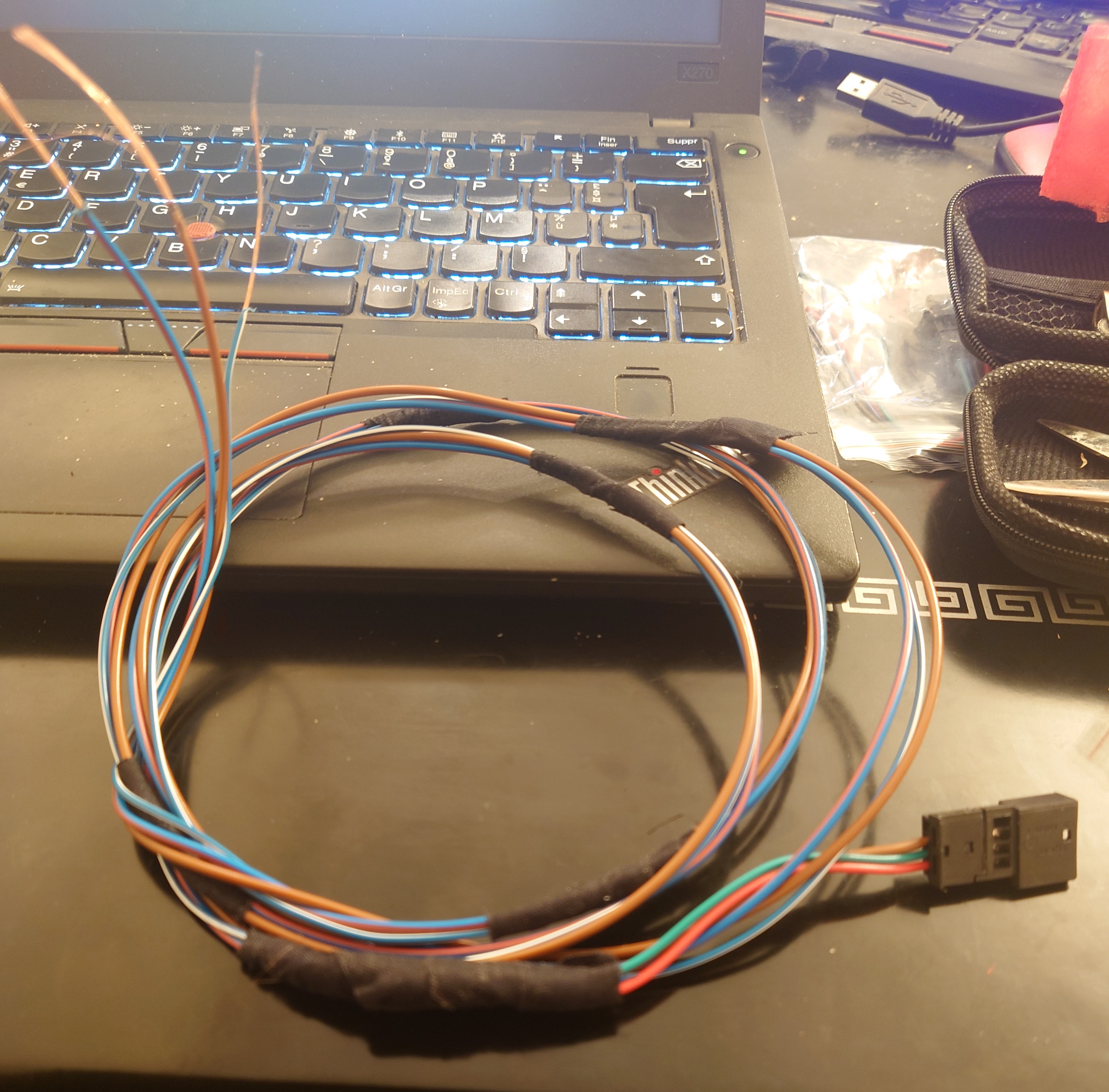

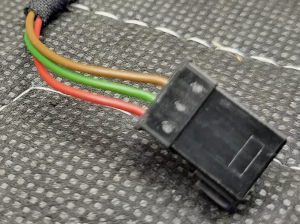

MIRROR CUSTOM CABLE

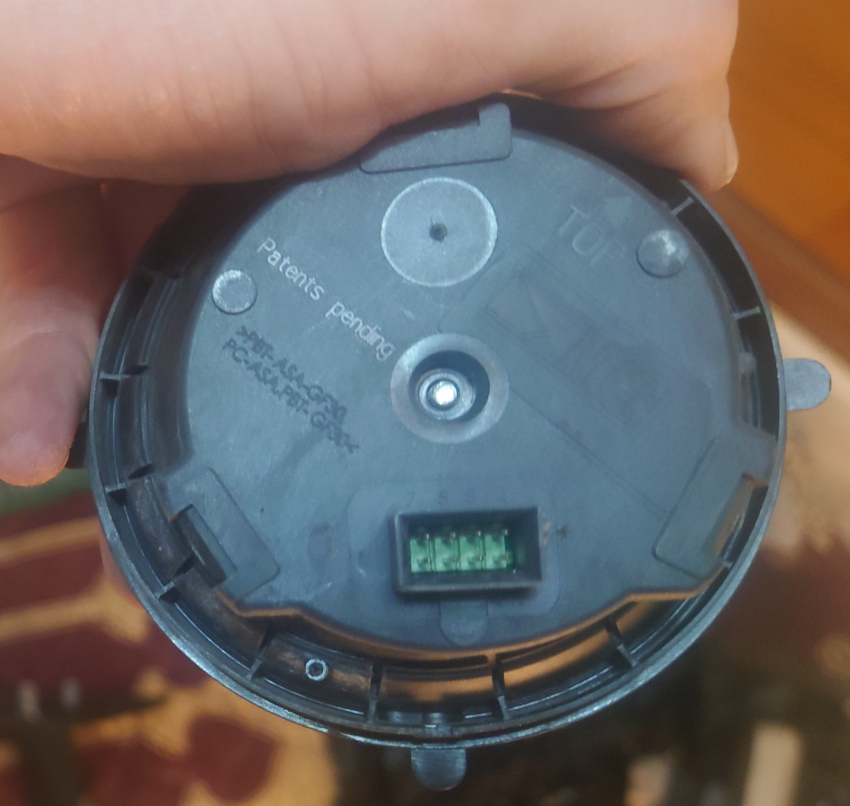

LIN BUS PINS

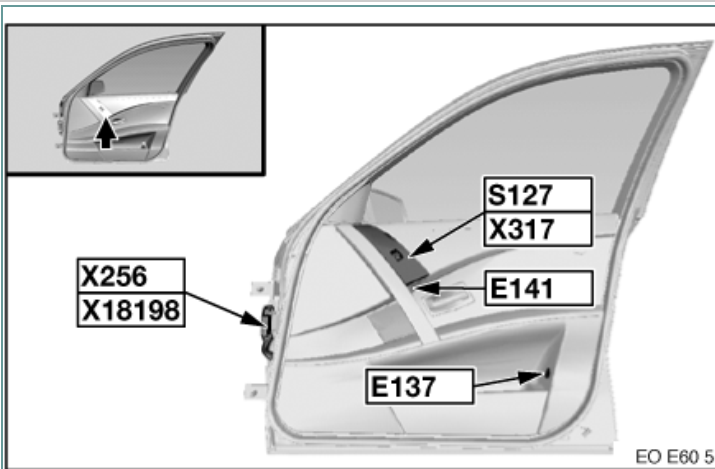

PASSENGER DOOR CONNECTOR X256
DOOR CARD

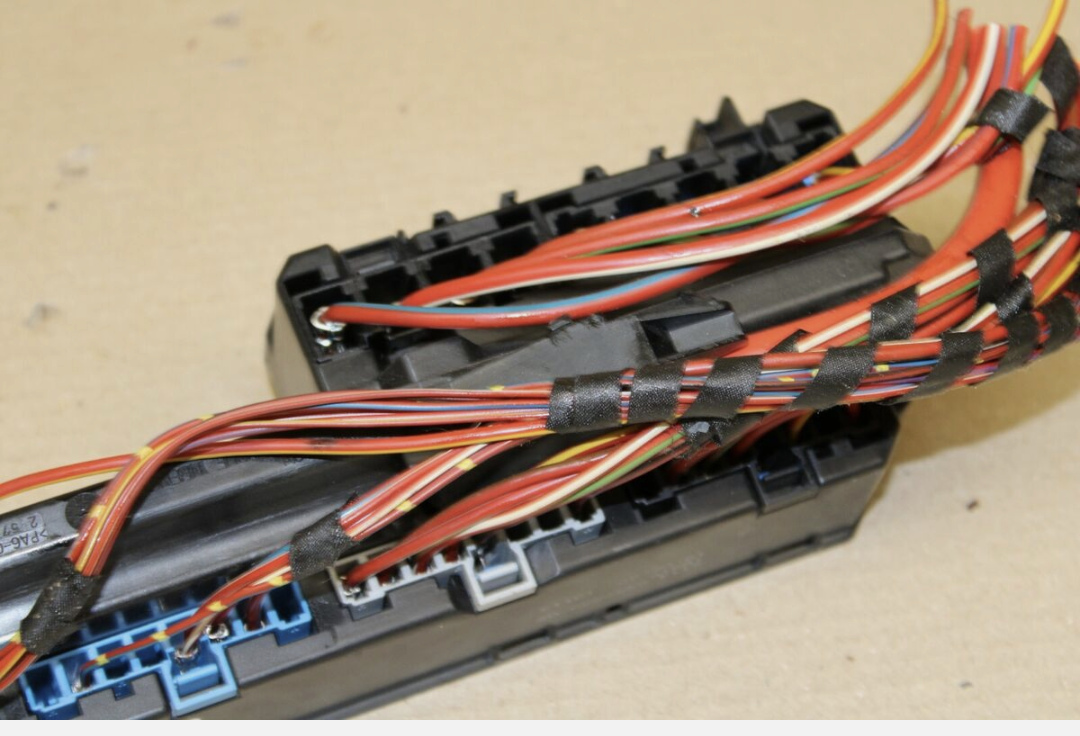

F32 PIN7 RED BLUE YELLOW WIRE

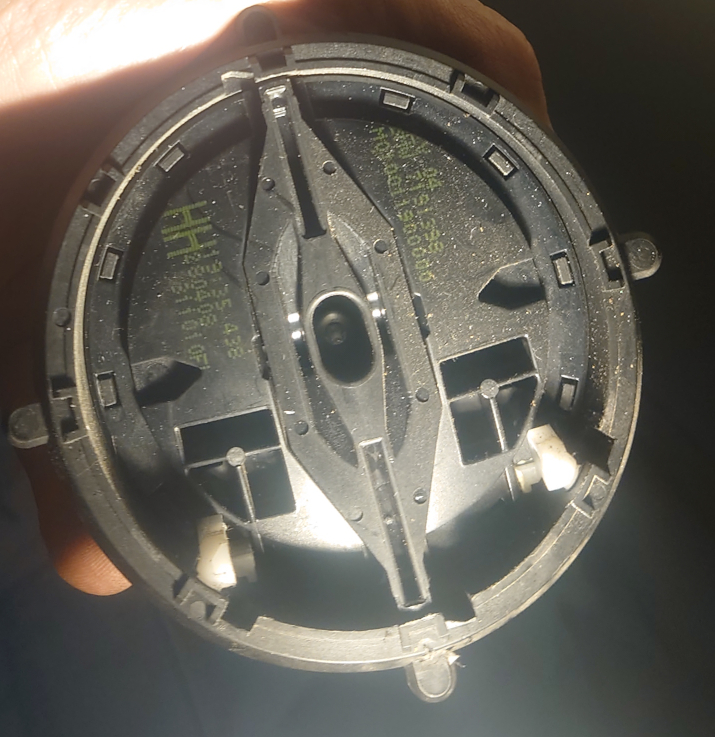

LIN BUS

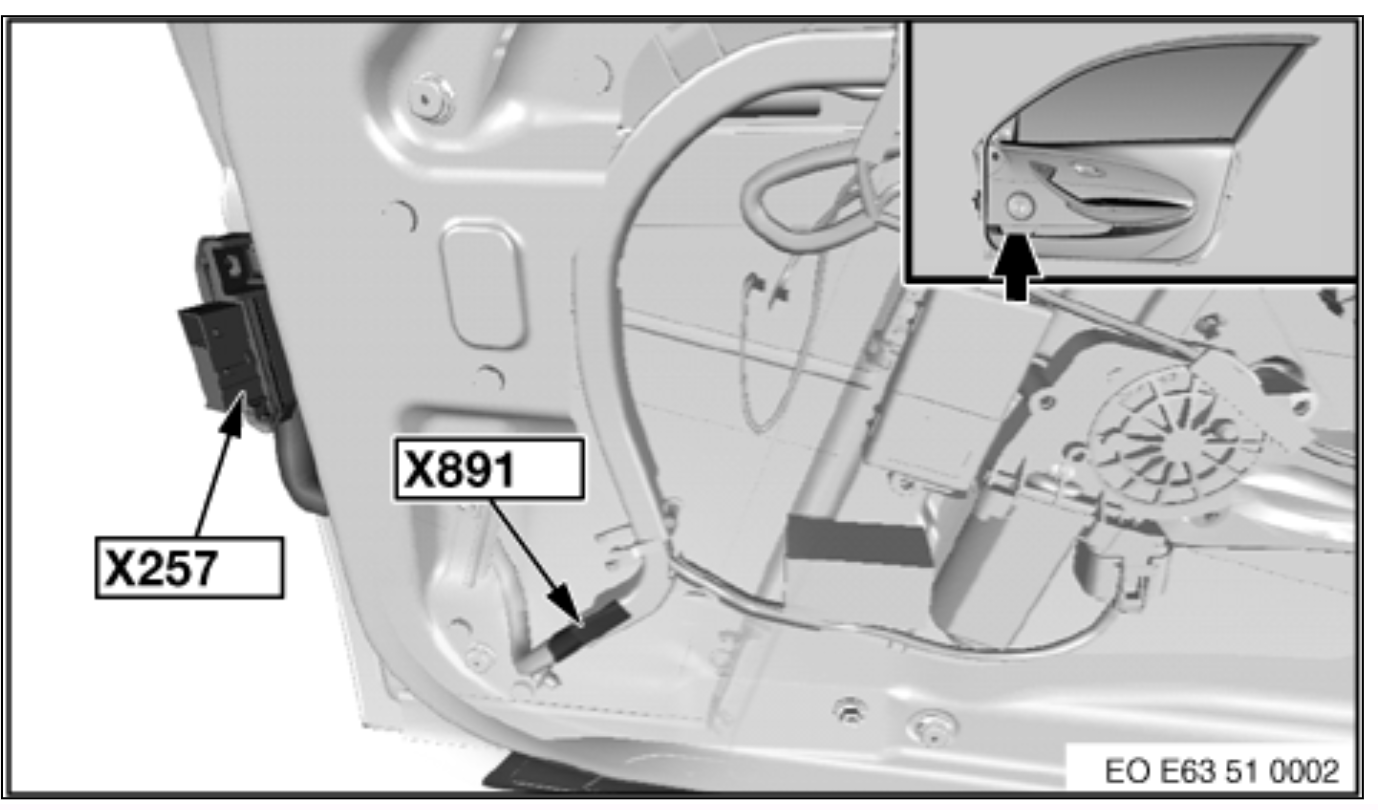

X891 GROUND DUMMY ADAPTER

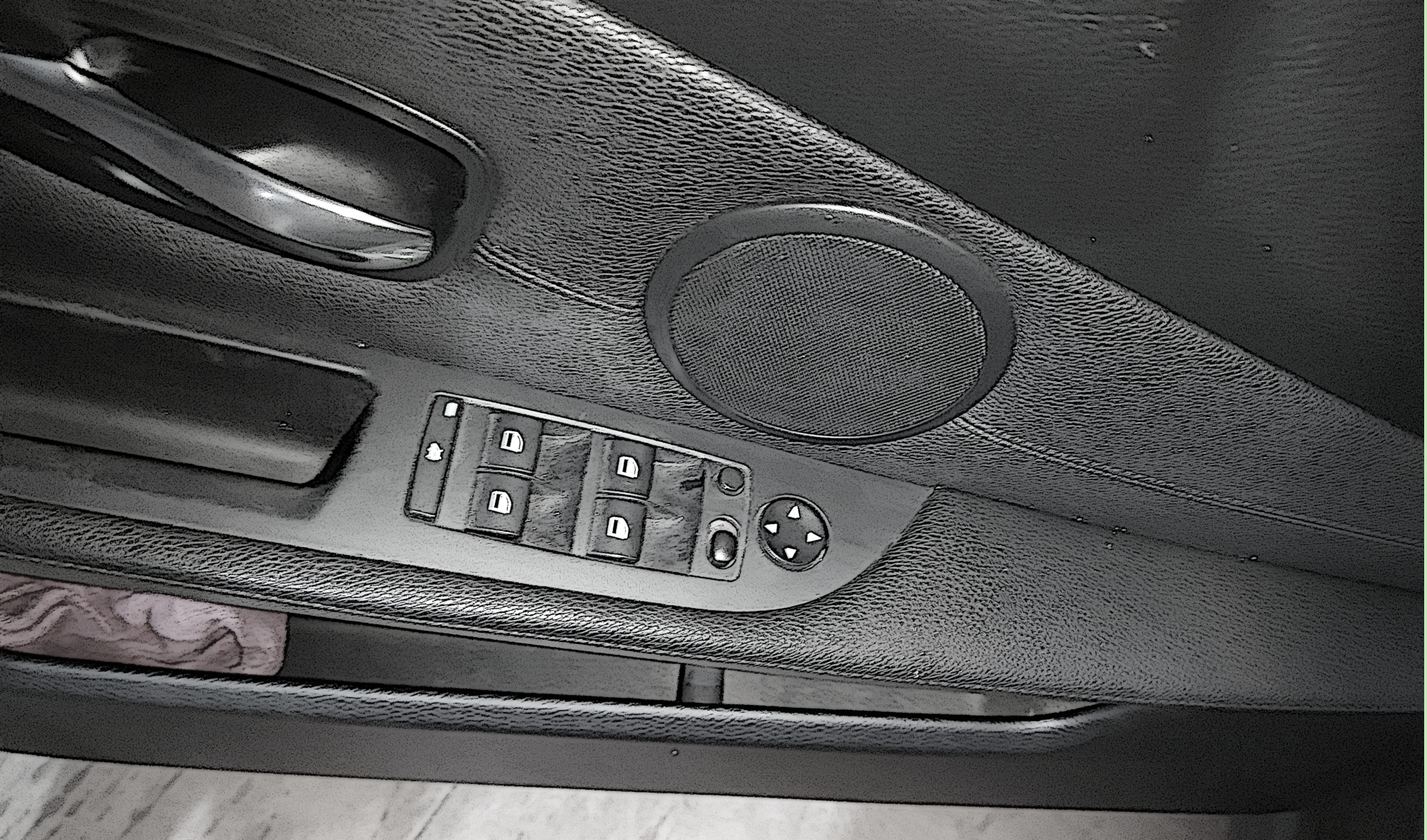

DOOR CONTROL SWITCH HIGH

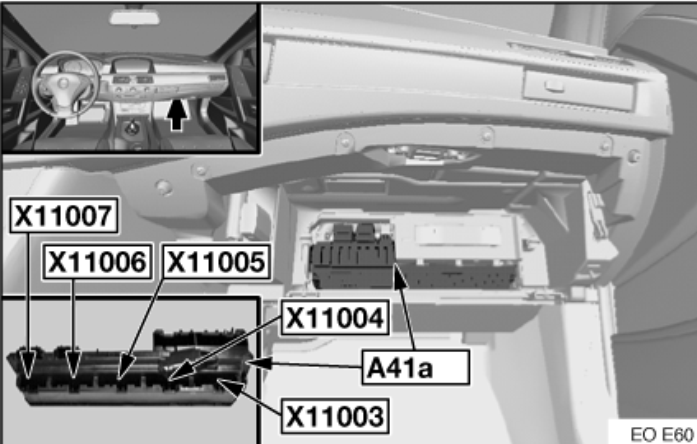

FUSE CONNECTOR X11005

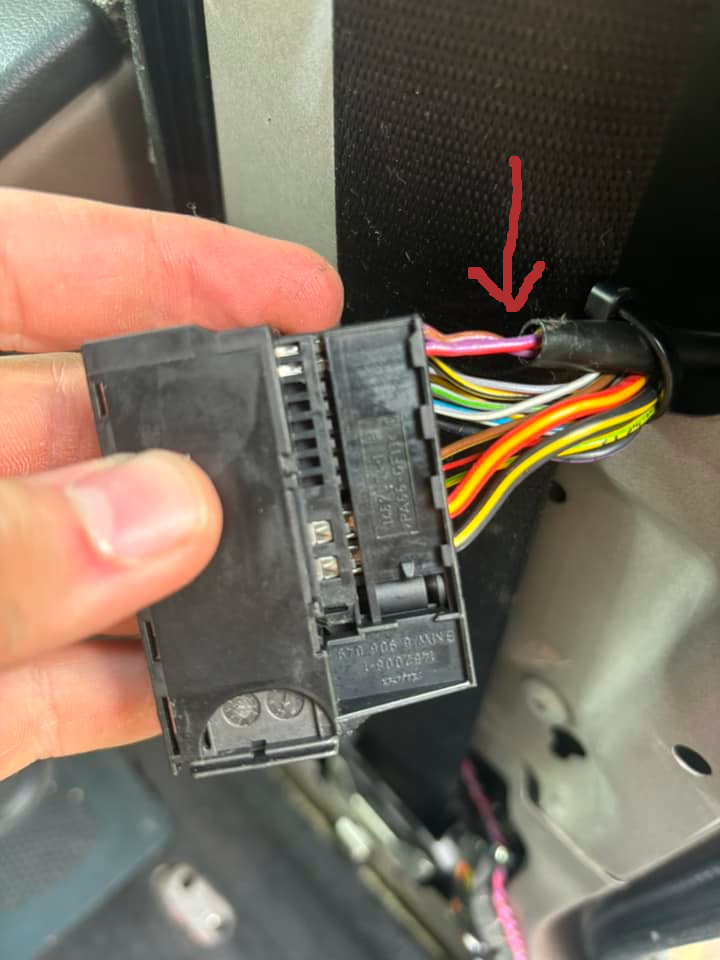

DOOR CONNECTOR 2

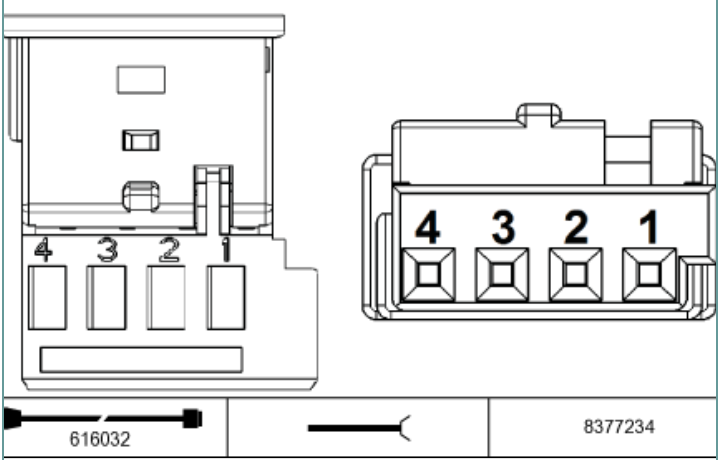

SWITCH CONNECTOR X10725

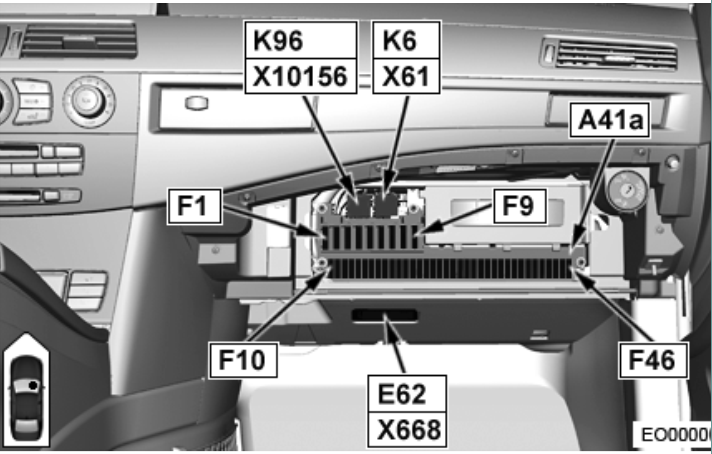

FUSE A41A

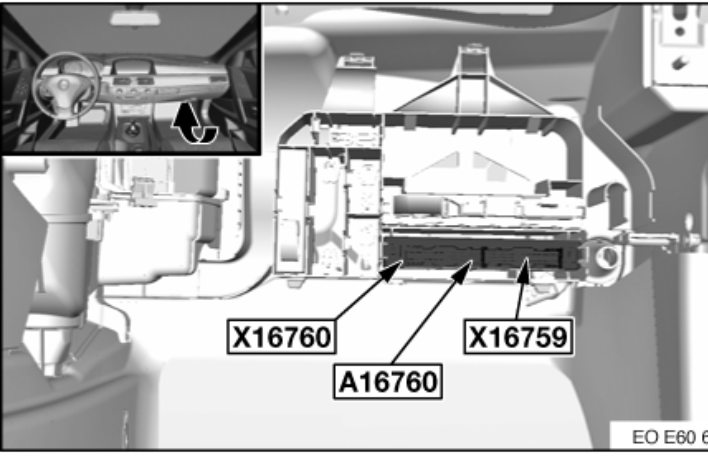

BGM X16760

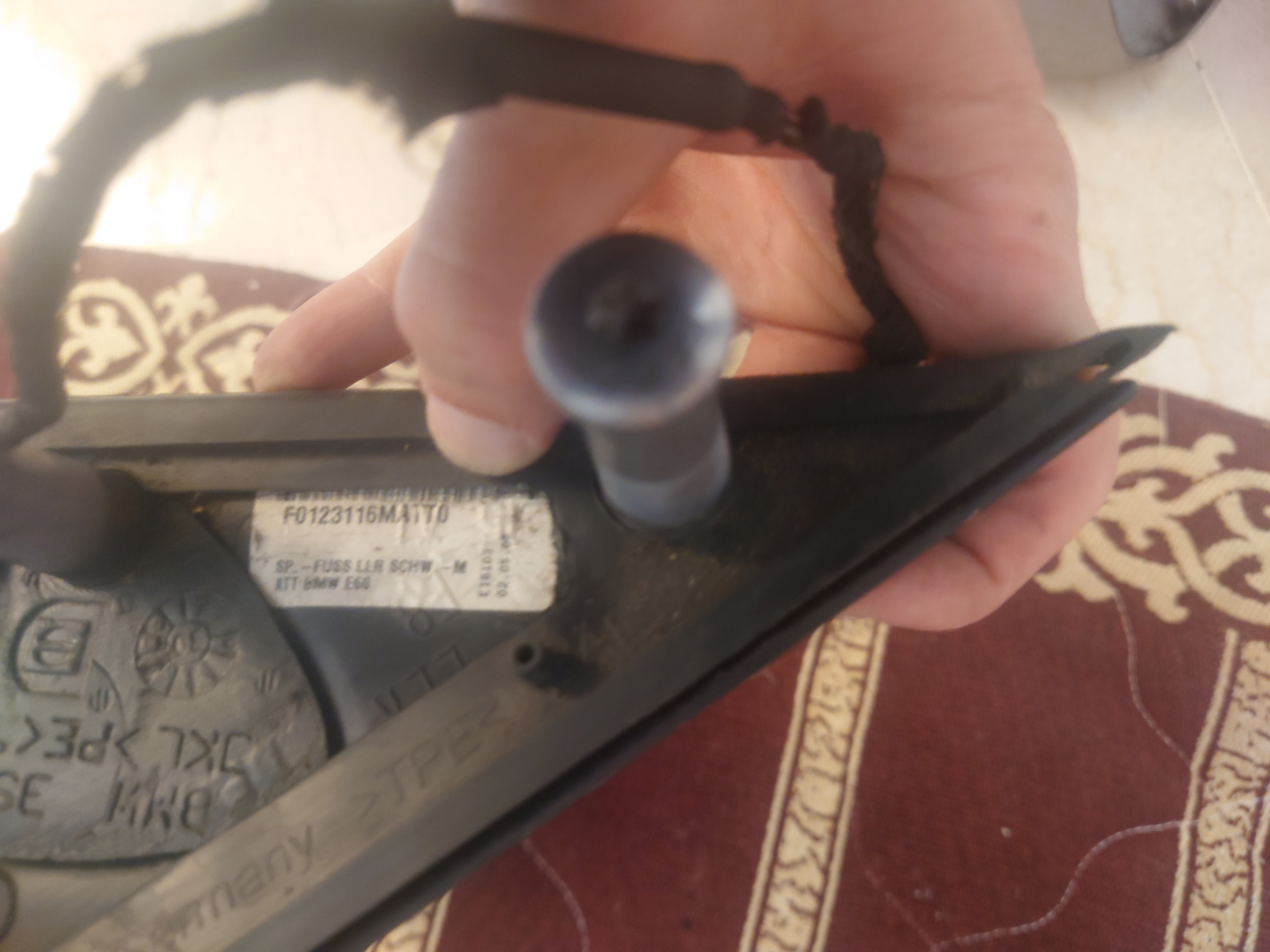

MIRROR SUPPORT

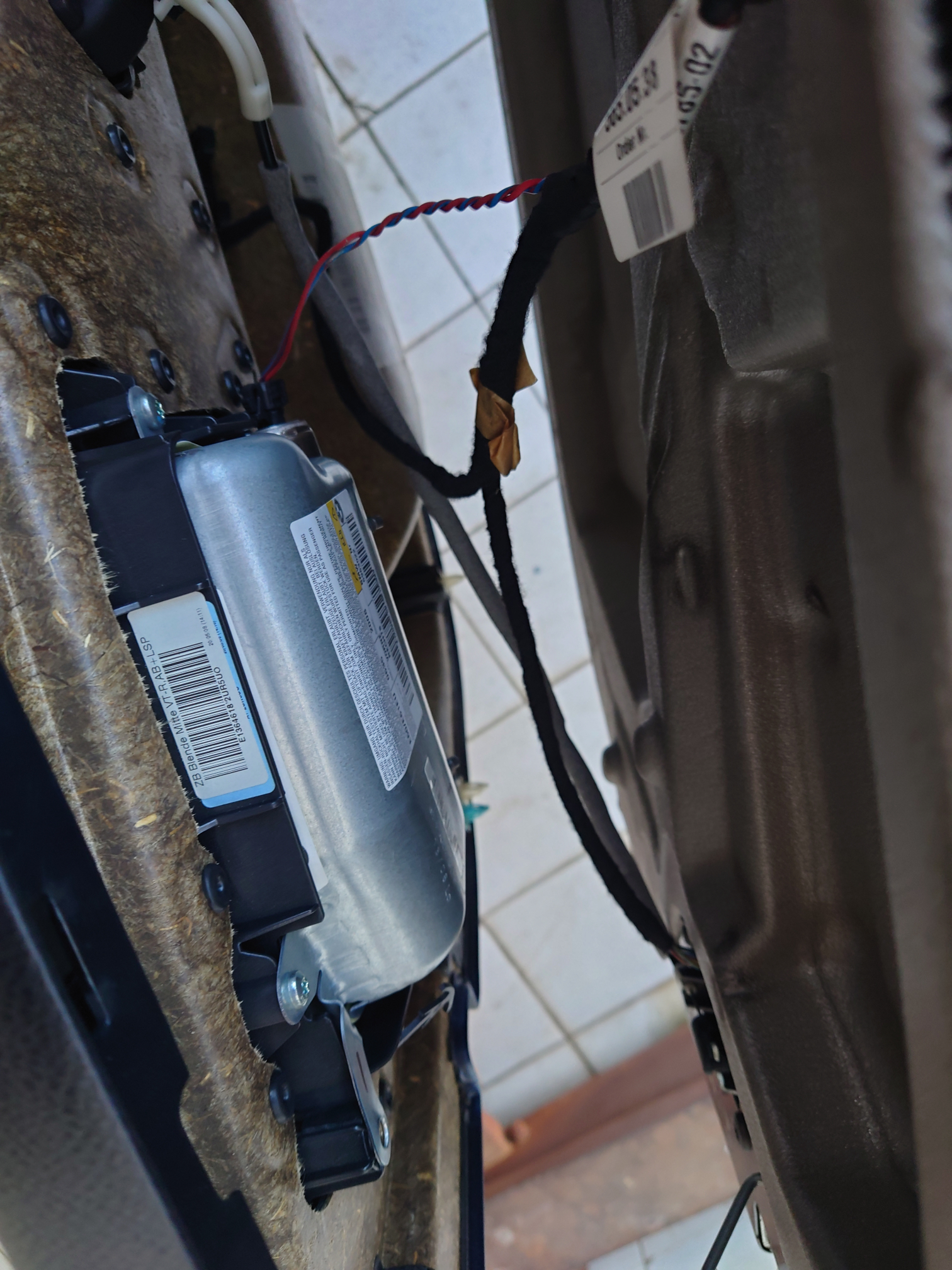

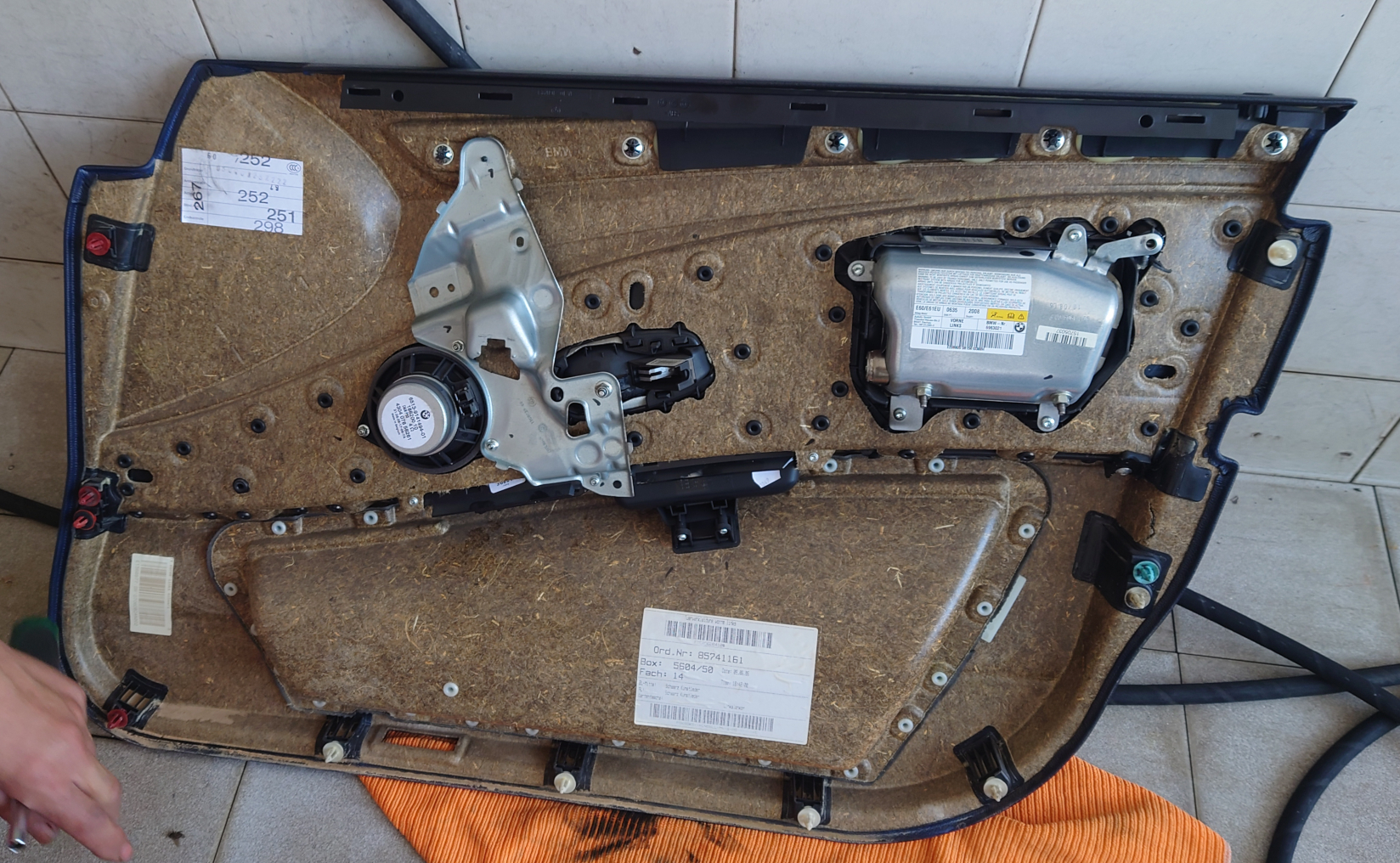

DOOR CARD 4

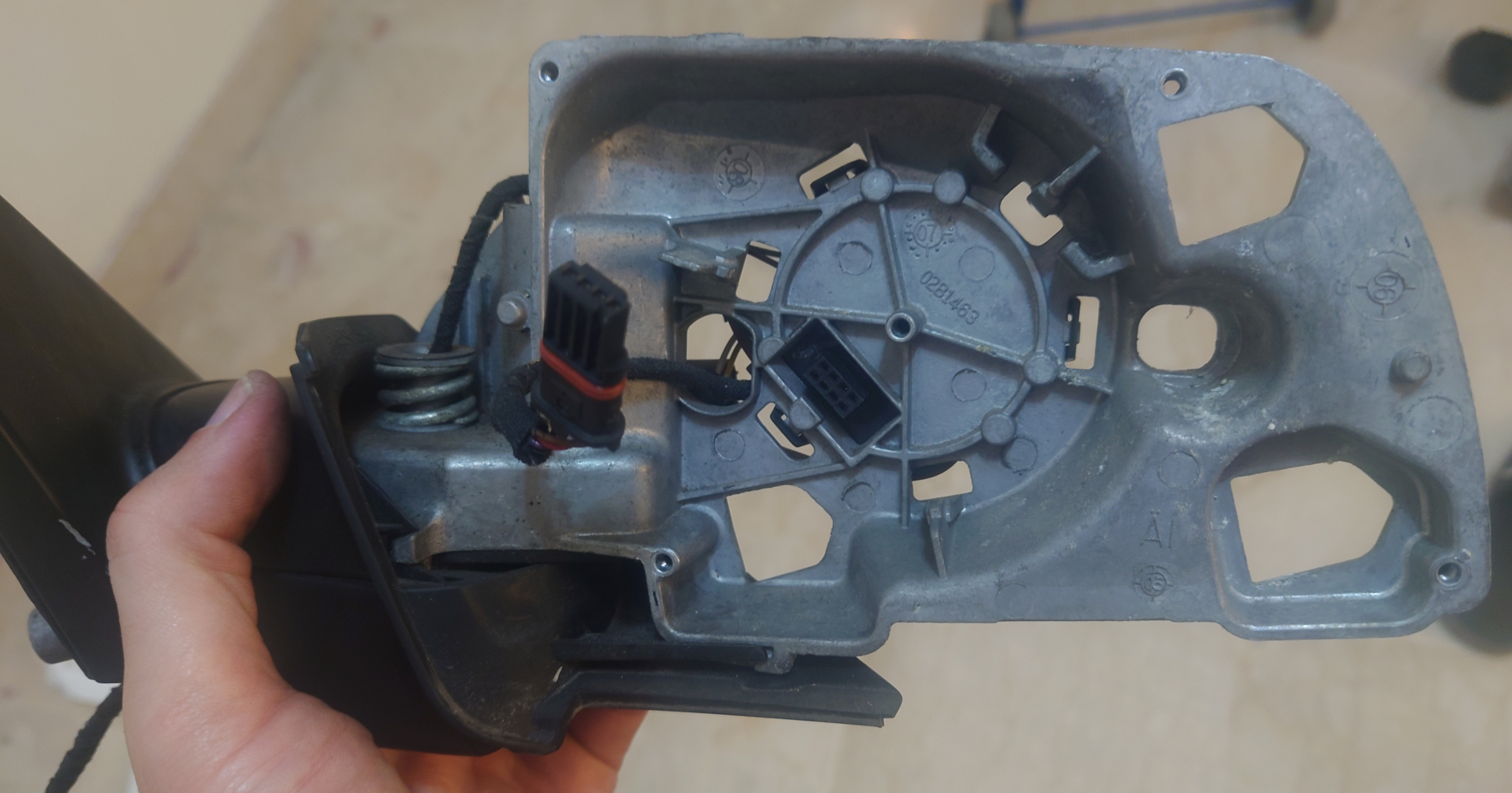

MIRROR HIGH STRIPPED

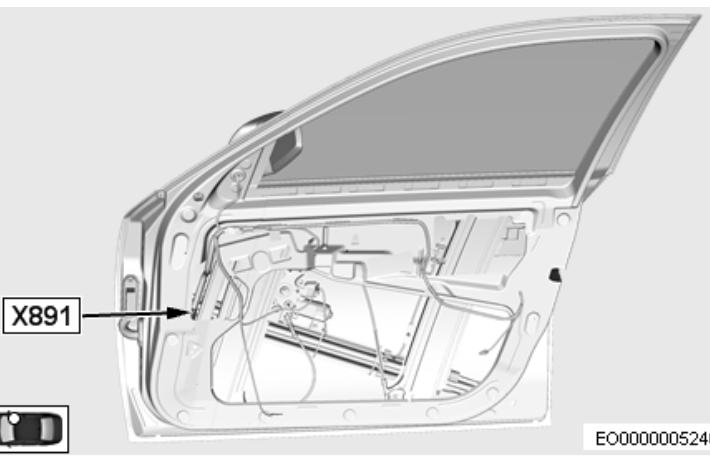

PASSENGER DOOR GROUND ADAPTER X981

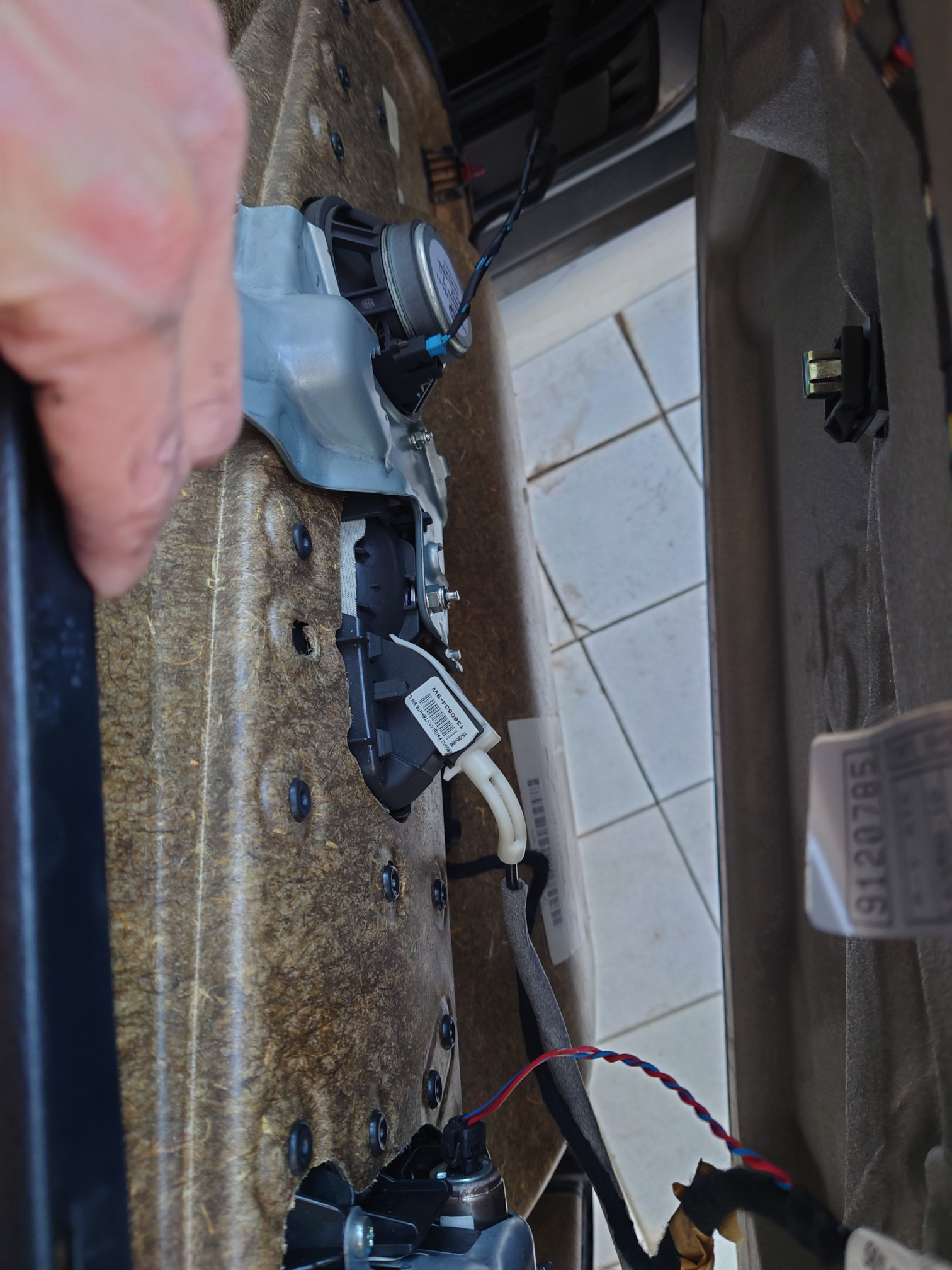

DOOR CARD 7

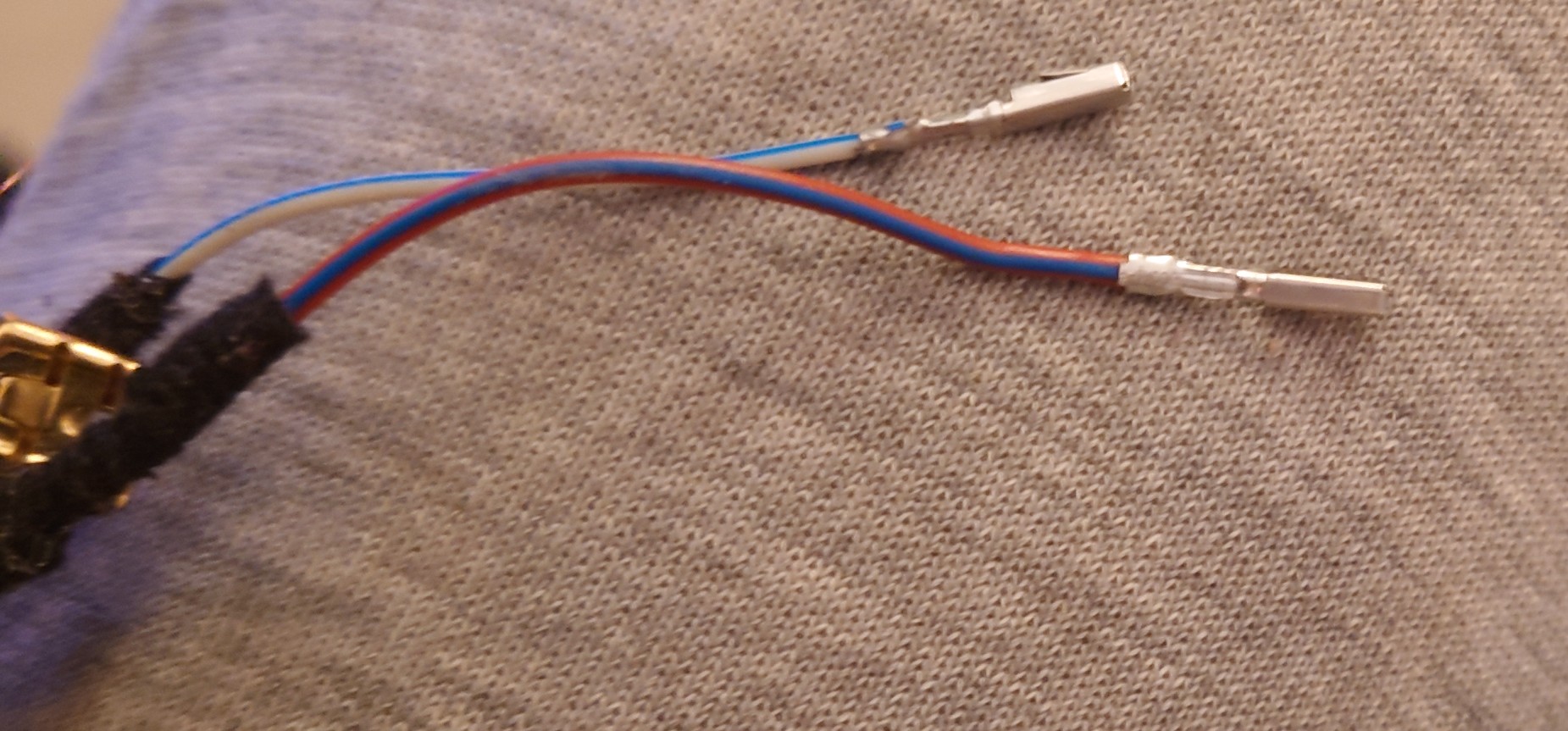

COLORED WIRES FOR GLOVEBOX

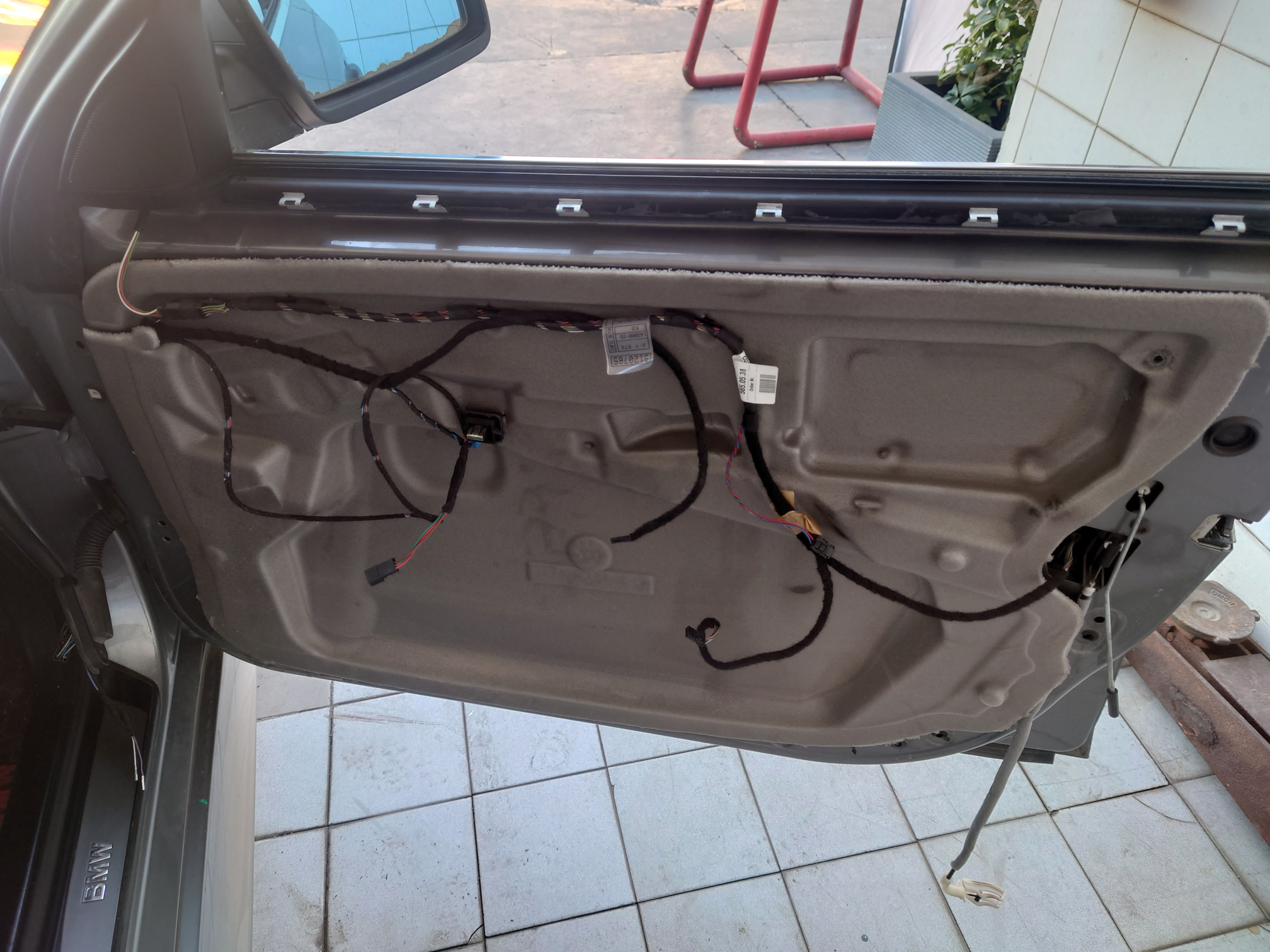

DOOR CARD 5

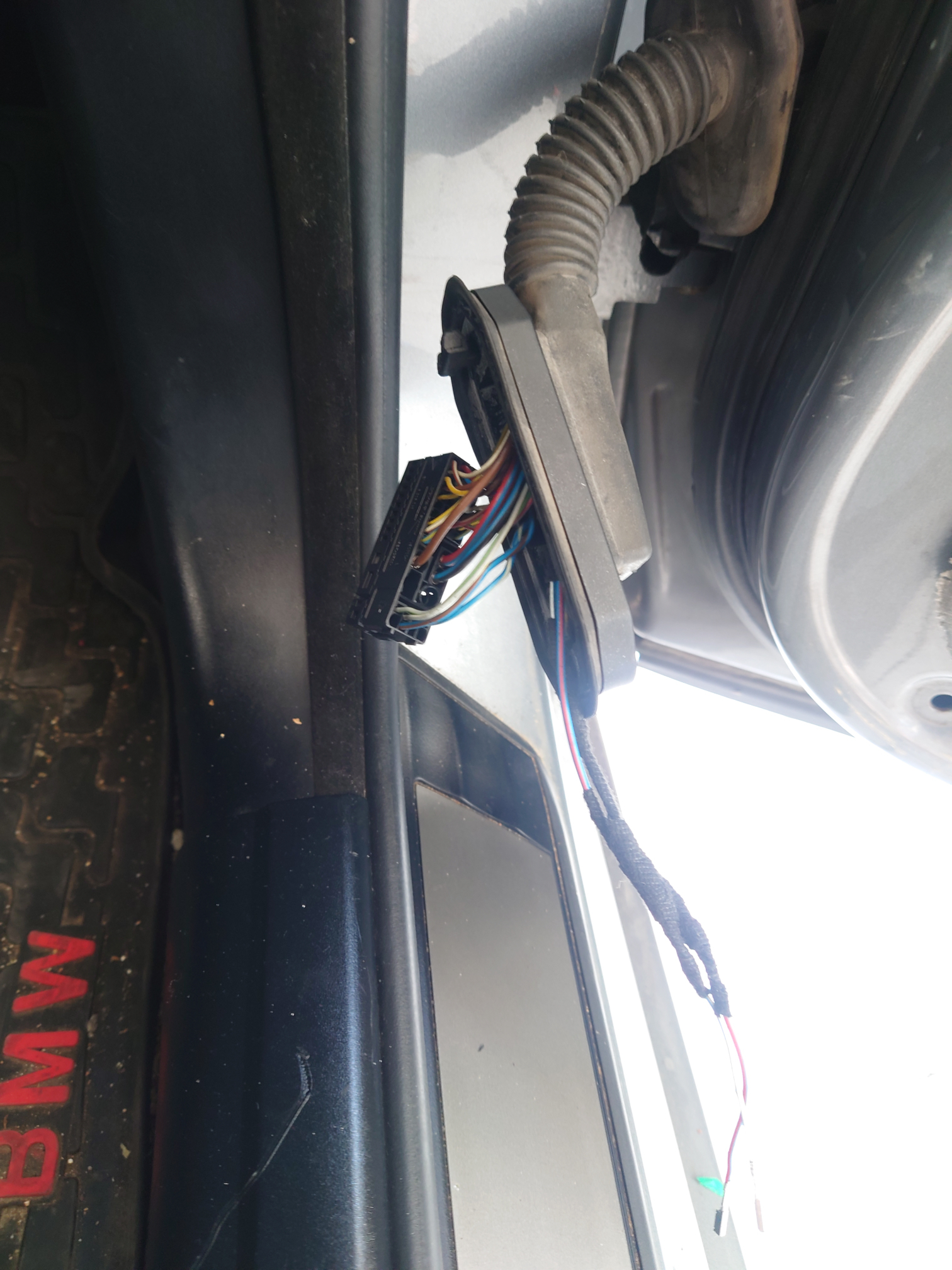

RIGHT DOOR X256 CONNECTOR

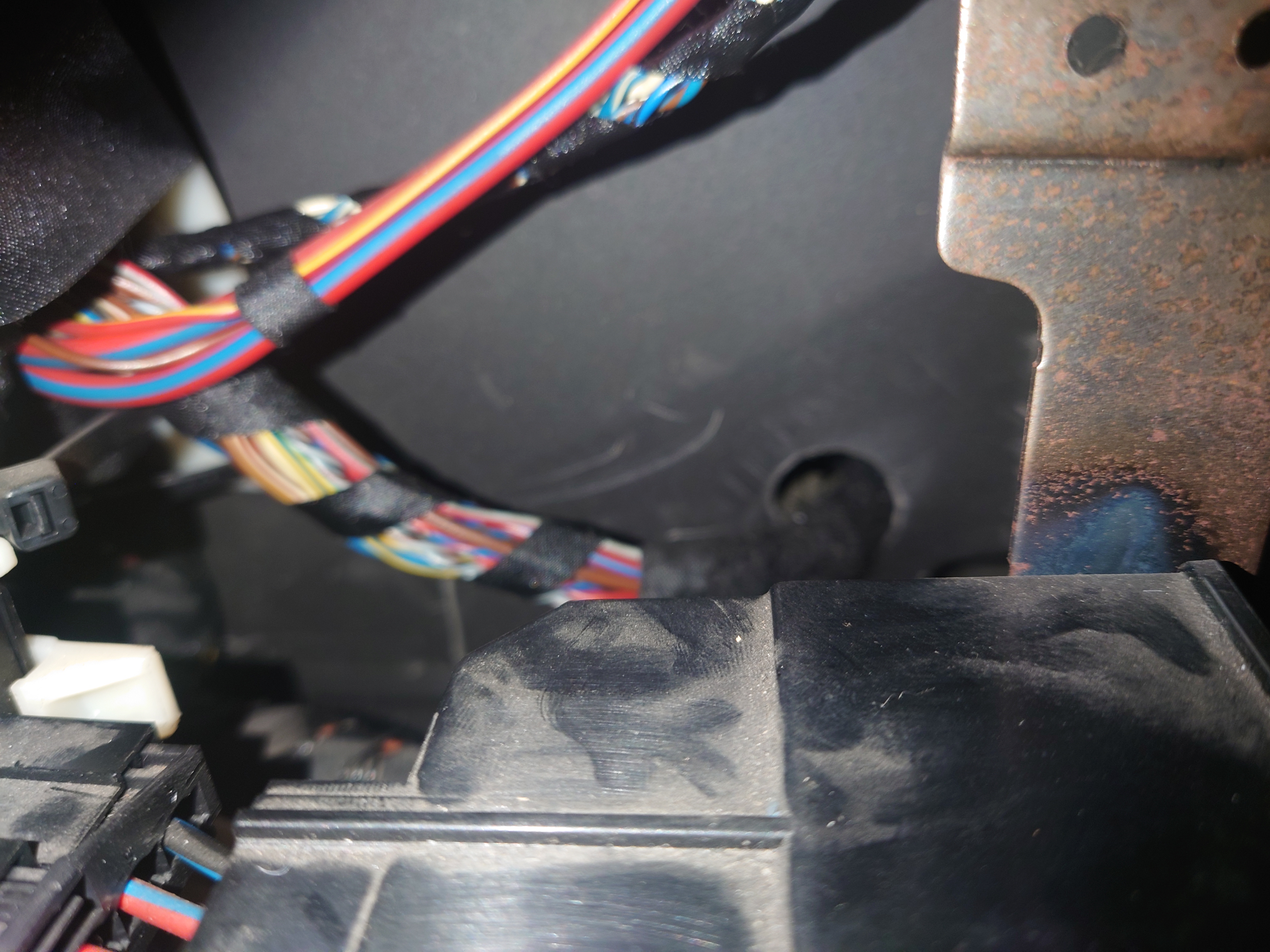

RIGHT DOOR TO BODY GLOVEBOX HOUSING HOLE

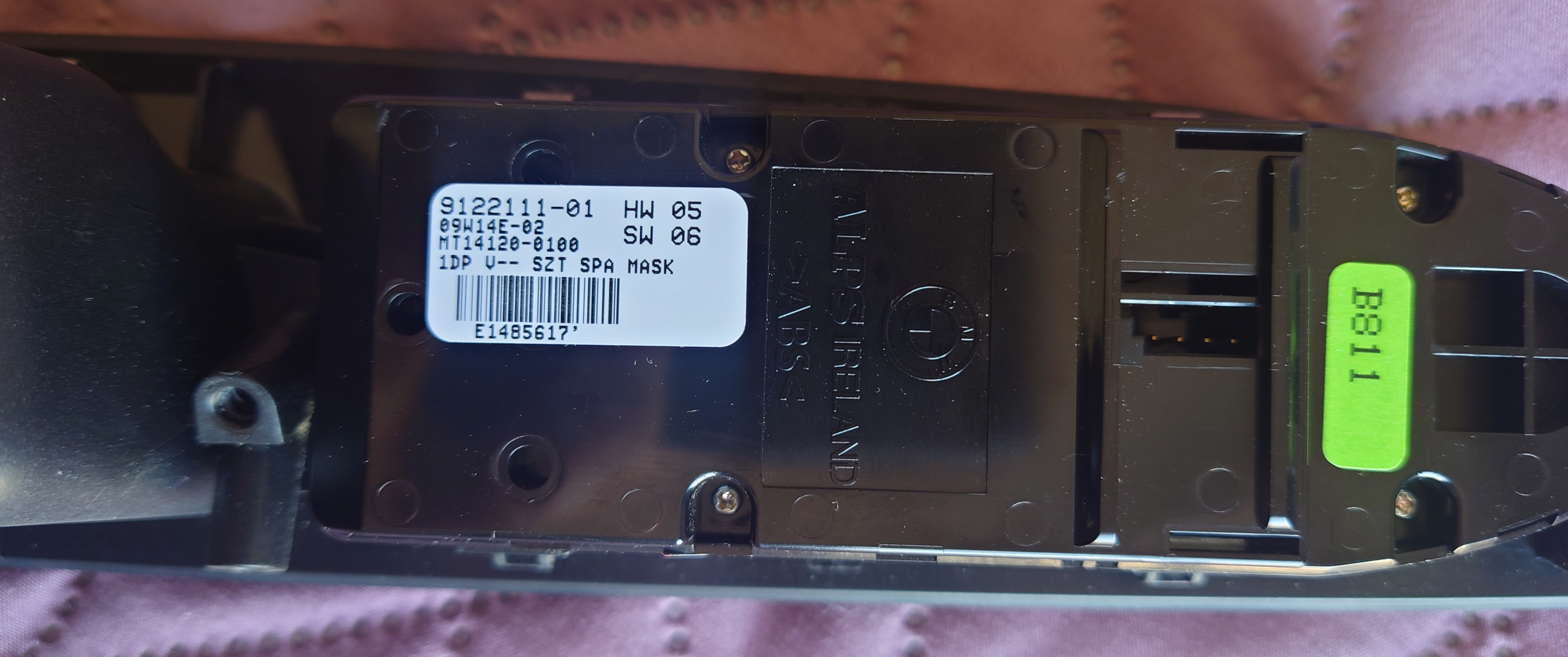

DOOR SWITCH 003
X891

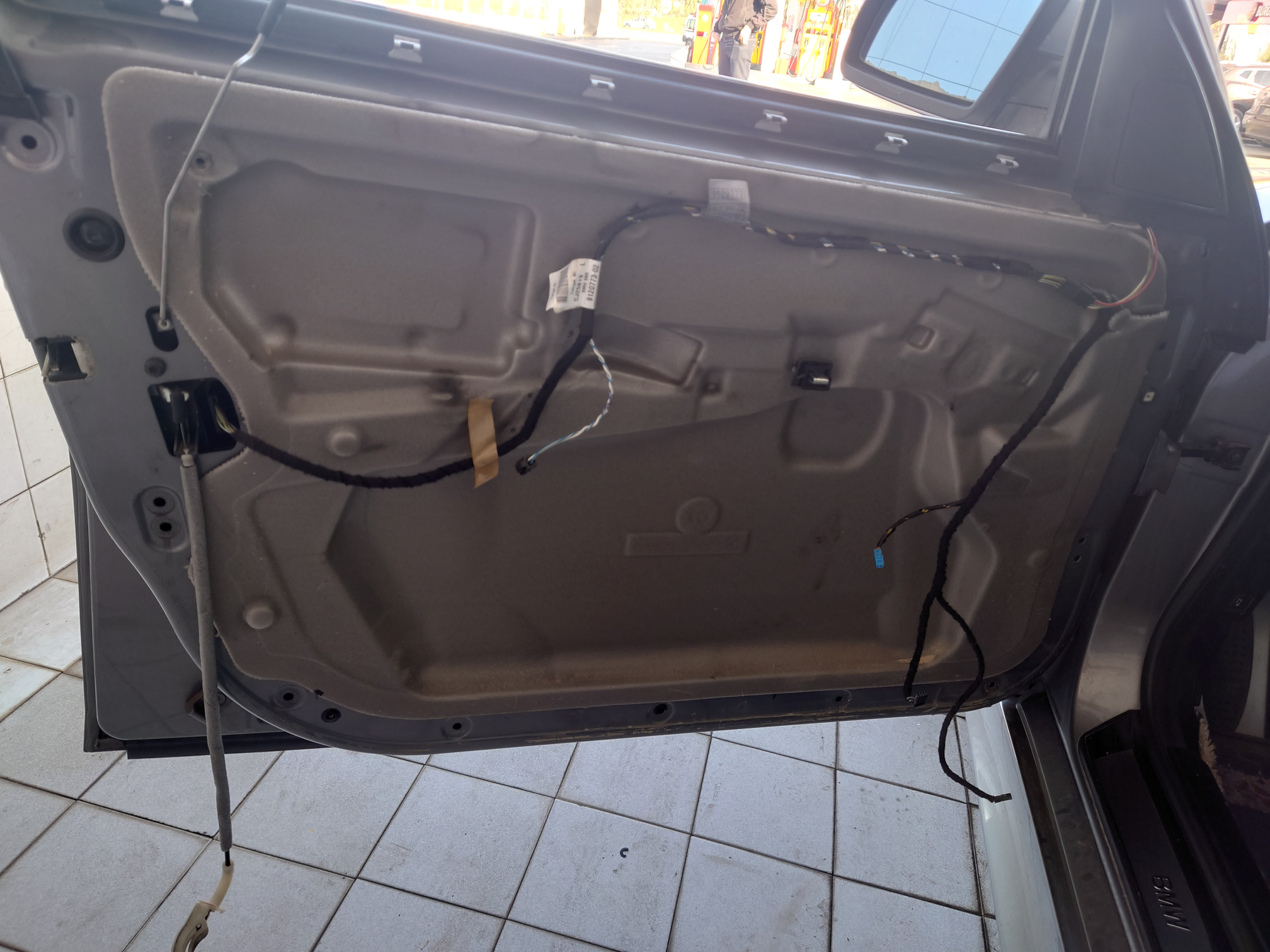

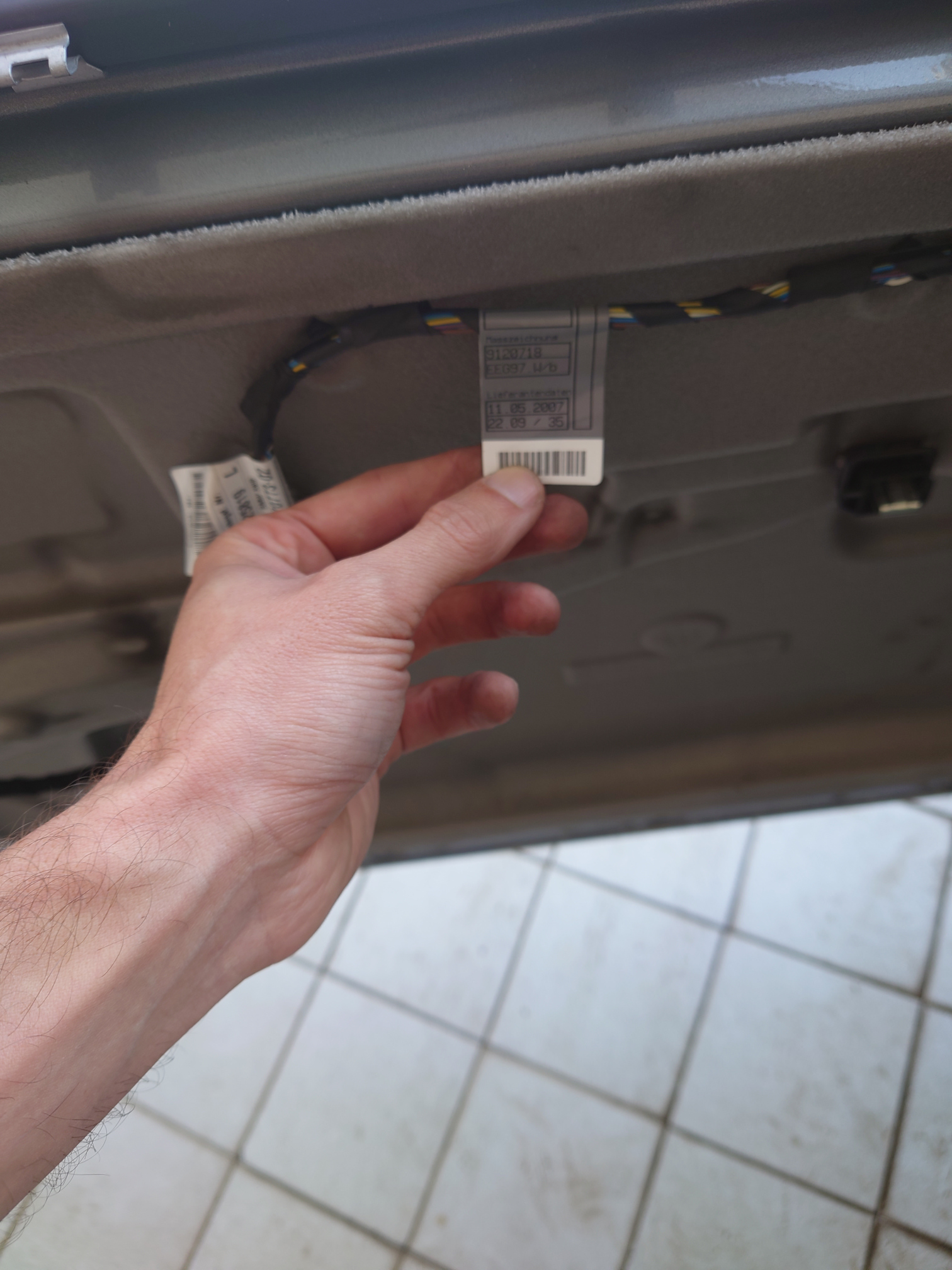

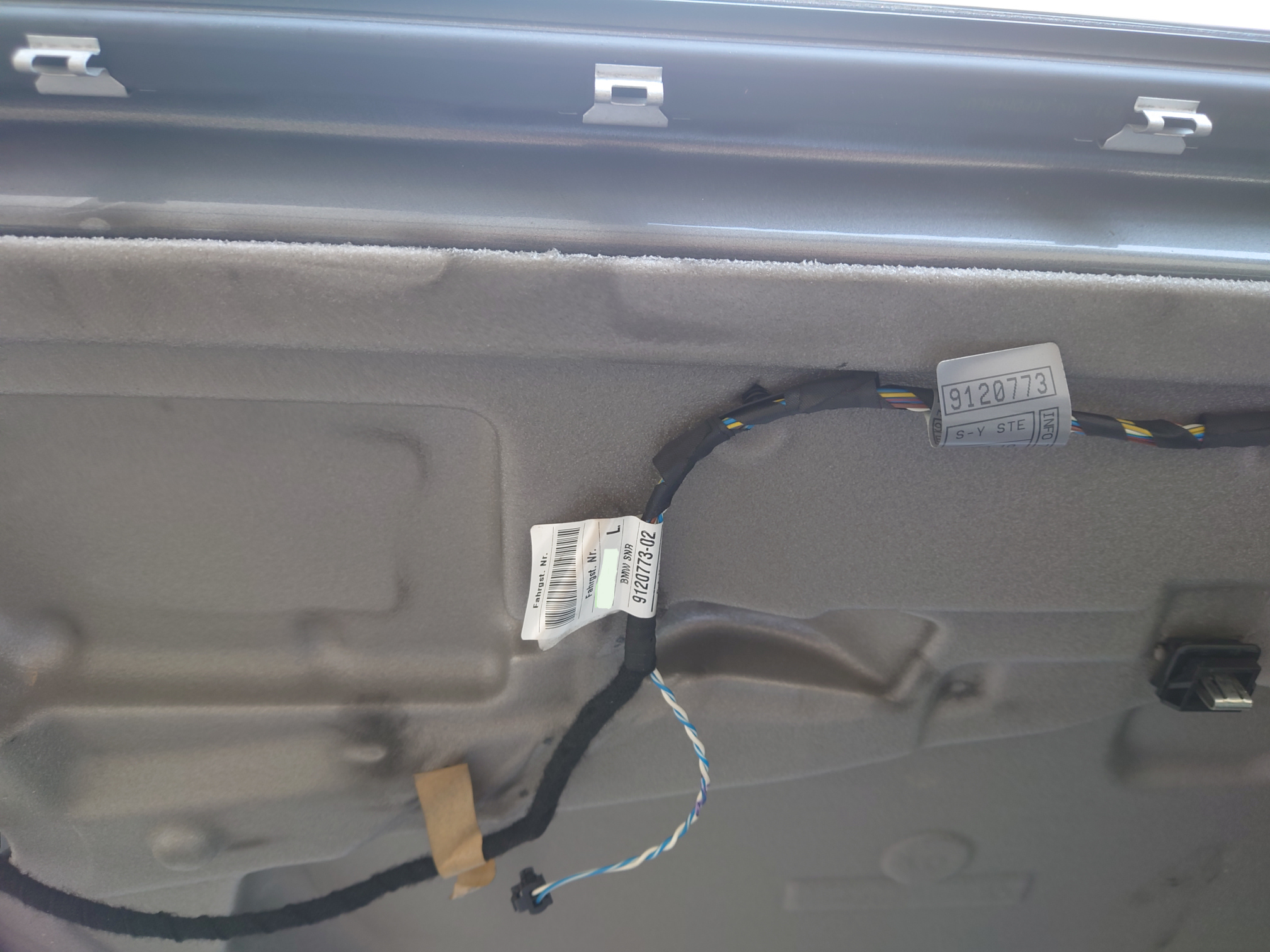

DOOR HARNESS

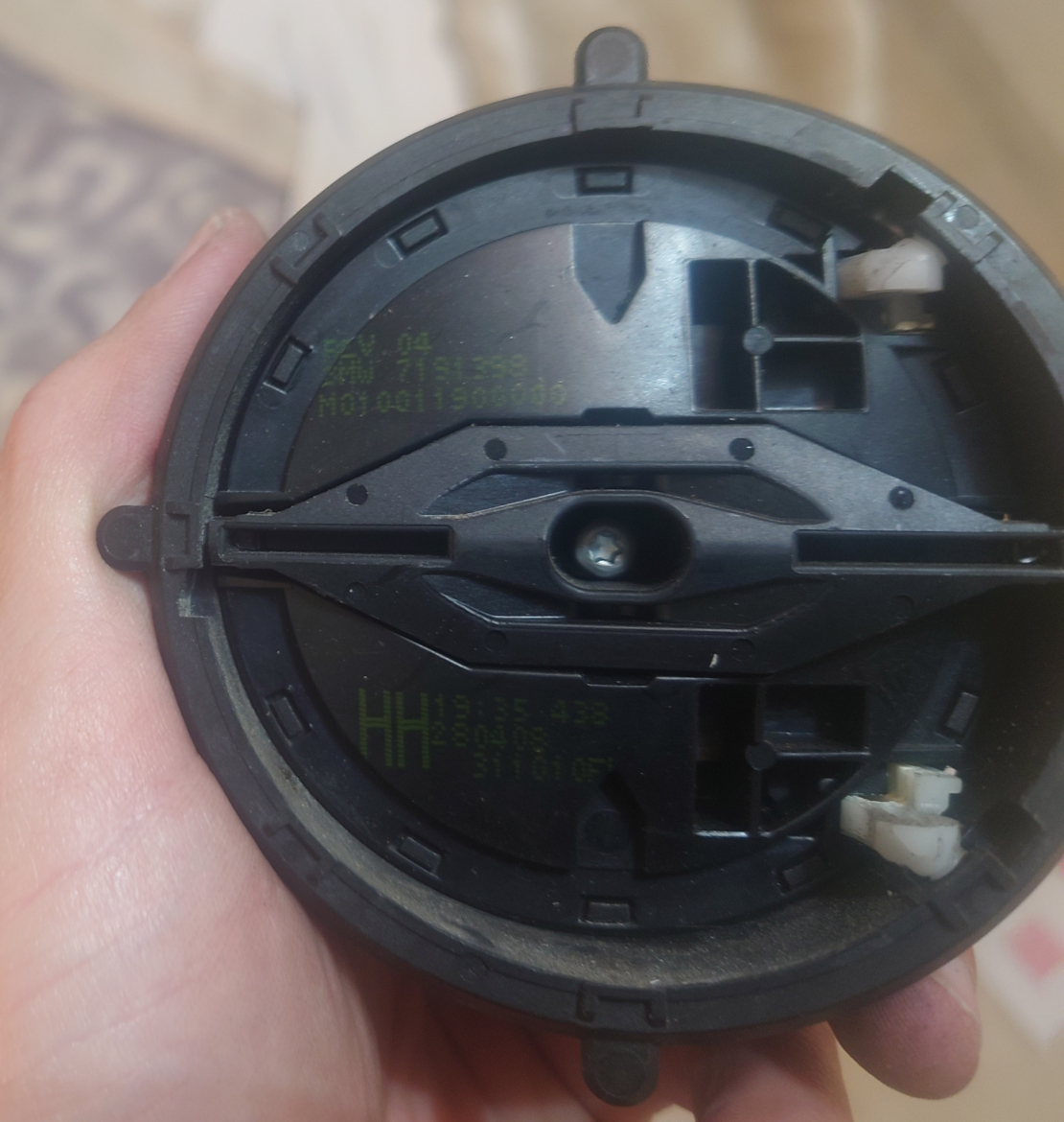

LIN BUS MIRROR HIGH

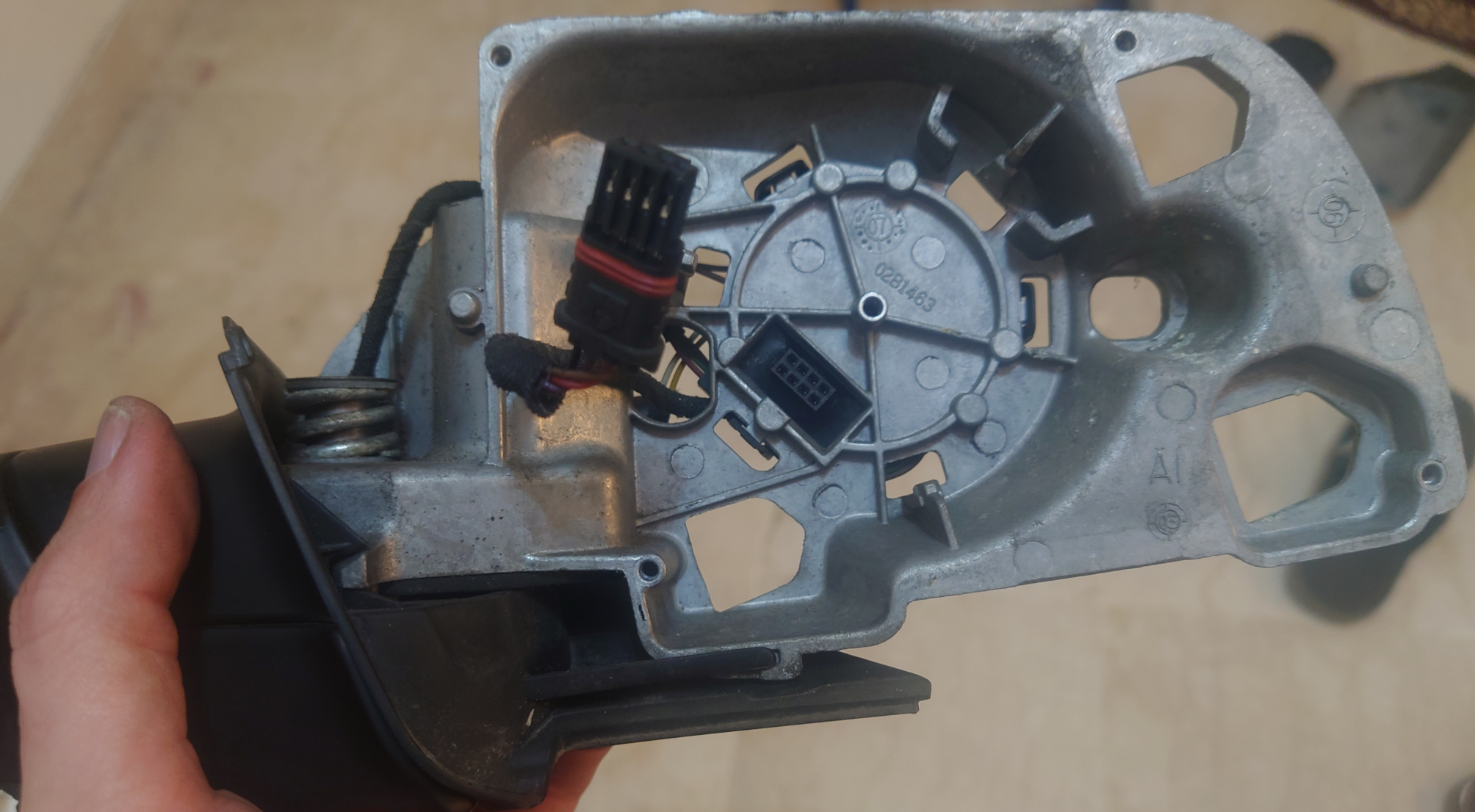

MIRROR HIGH VIRGINFACE

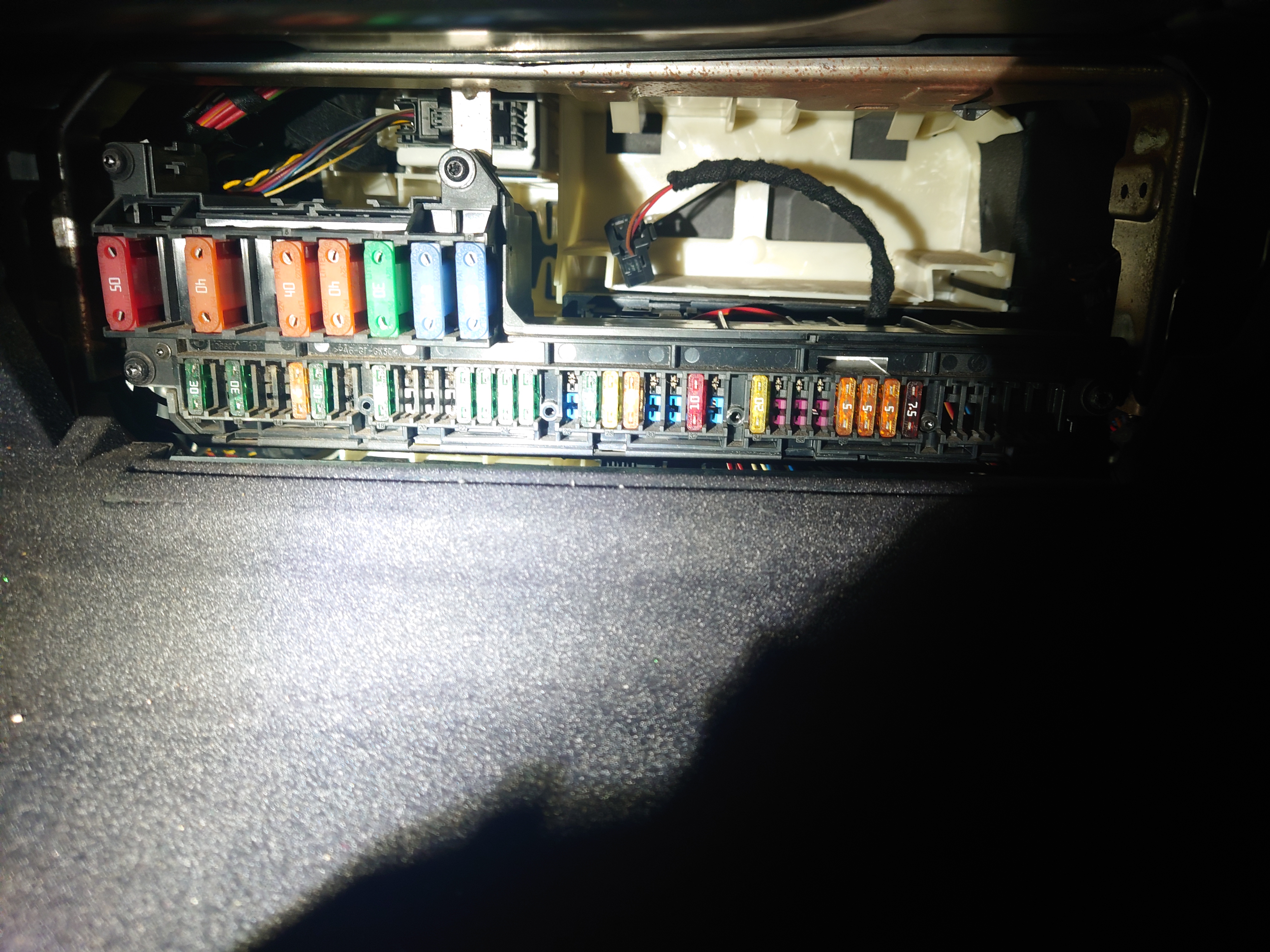

FUSE BOX.JPG
DOOR HARNESS OLD .JPG

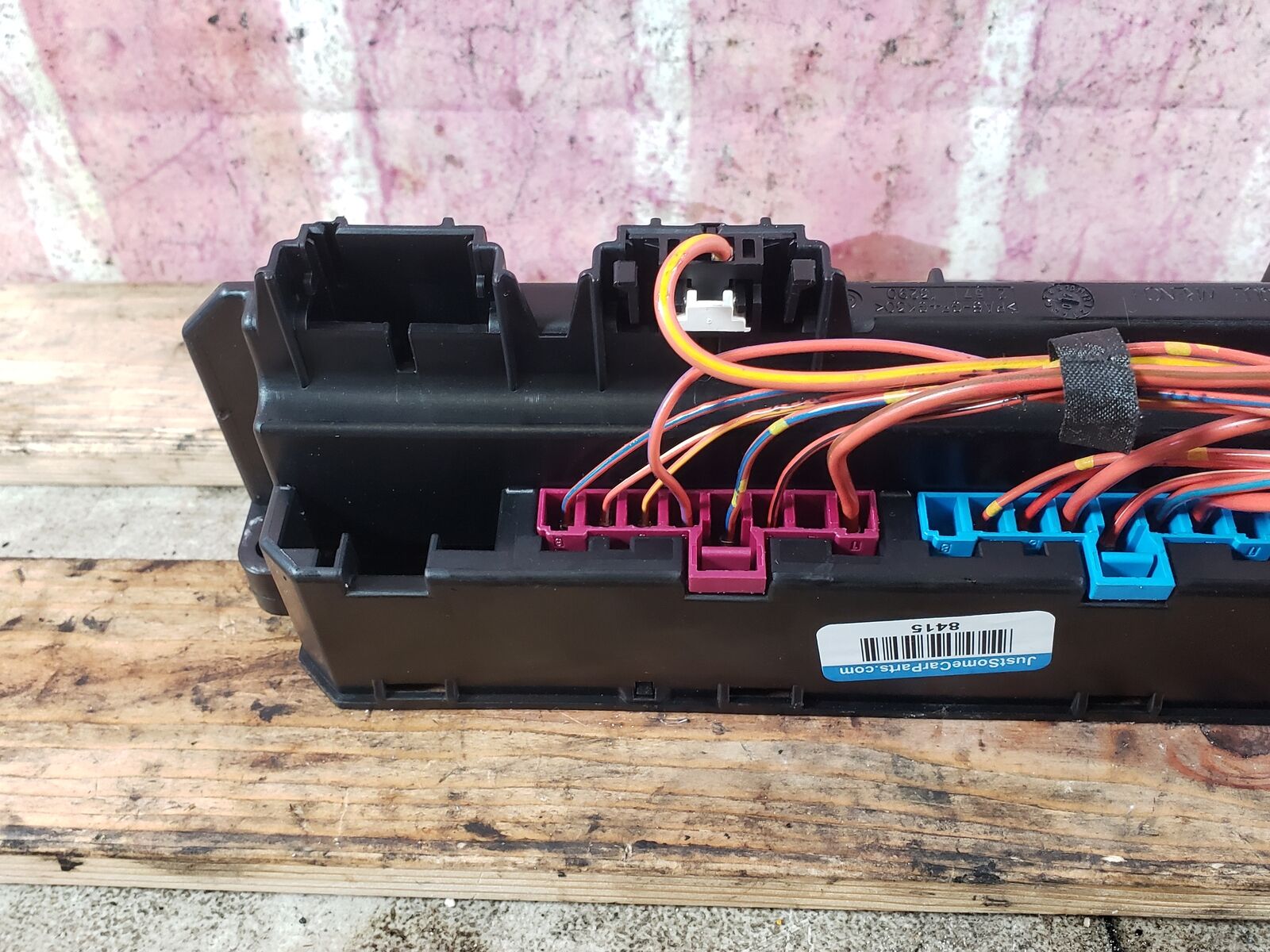

FUSE BOX A41 X11005
S430A COMFORT CLOSING.MP4

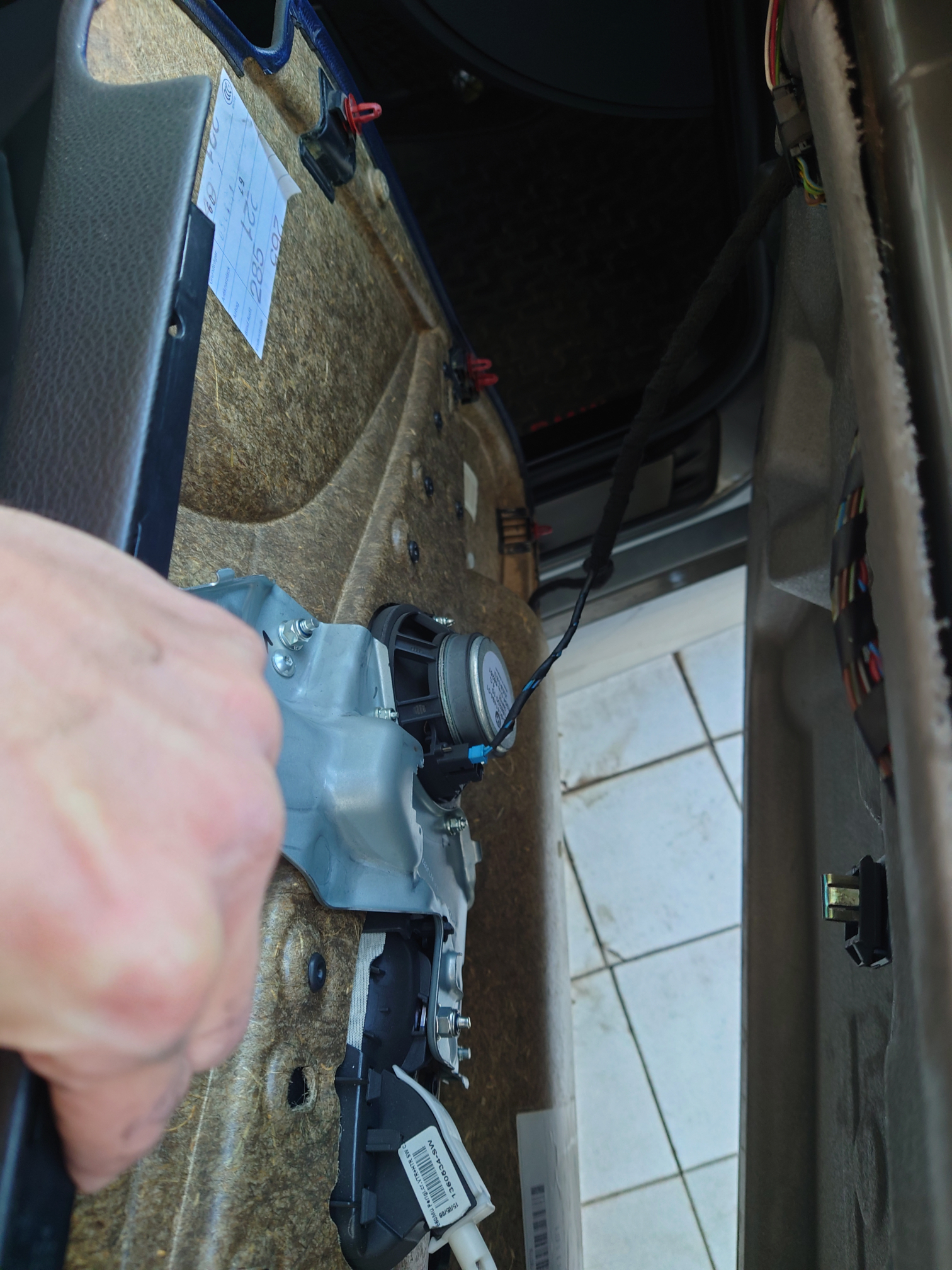

DOOR CARD 3

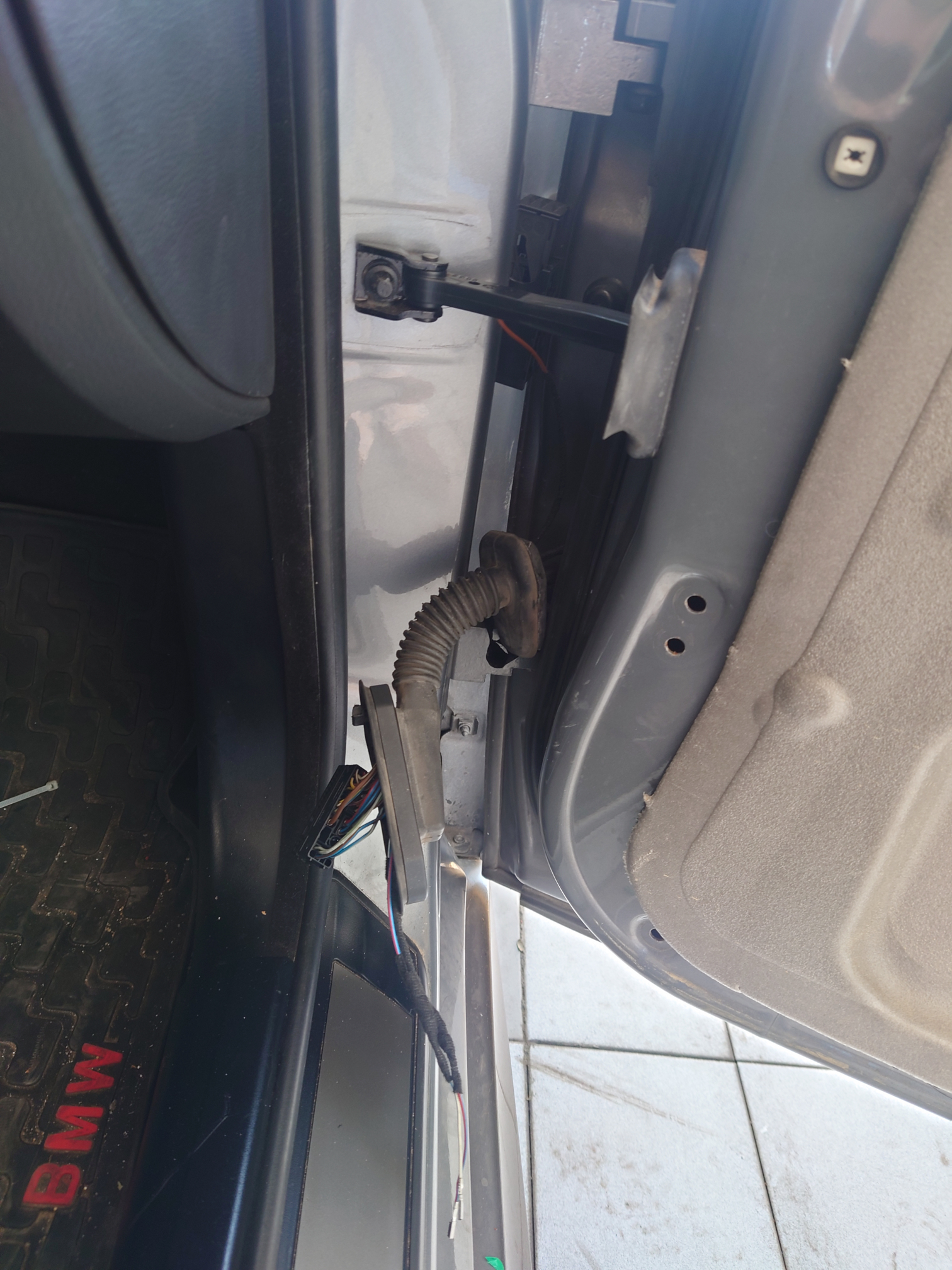

DOOR BODY CONNECTOR

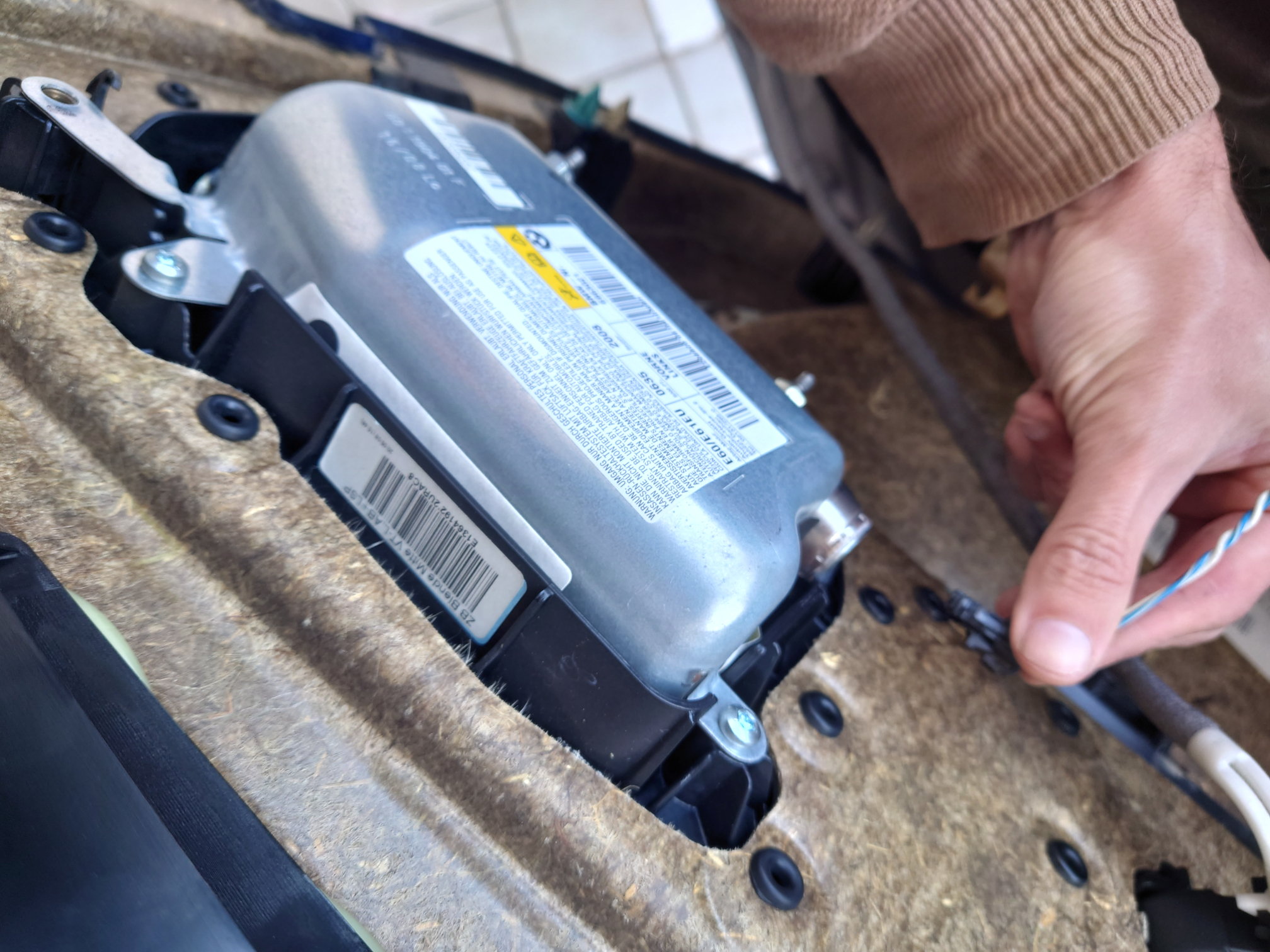

DOOR CARD 8

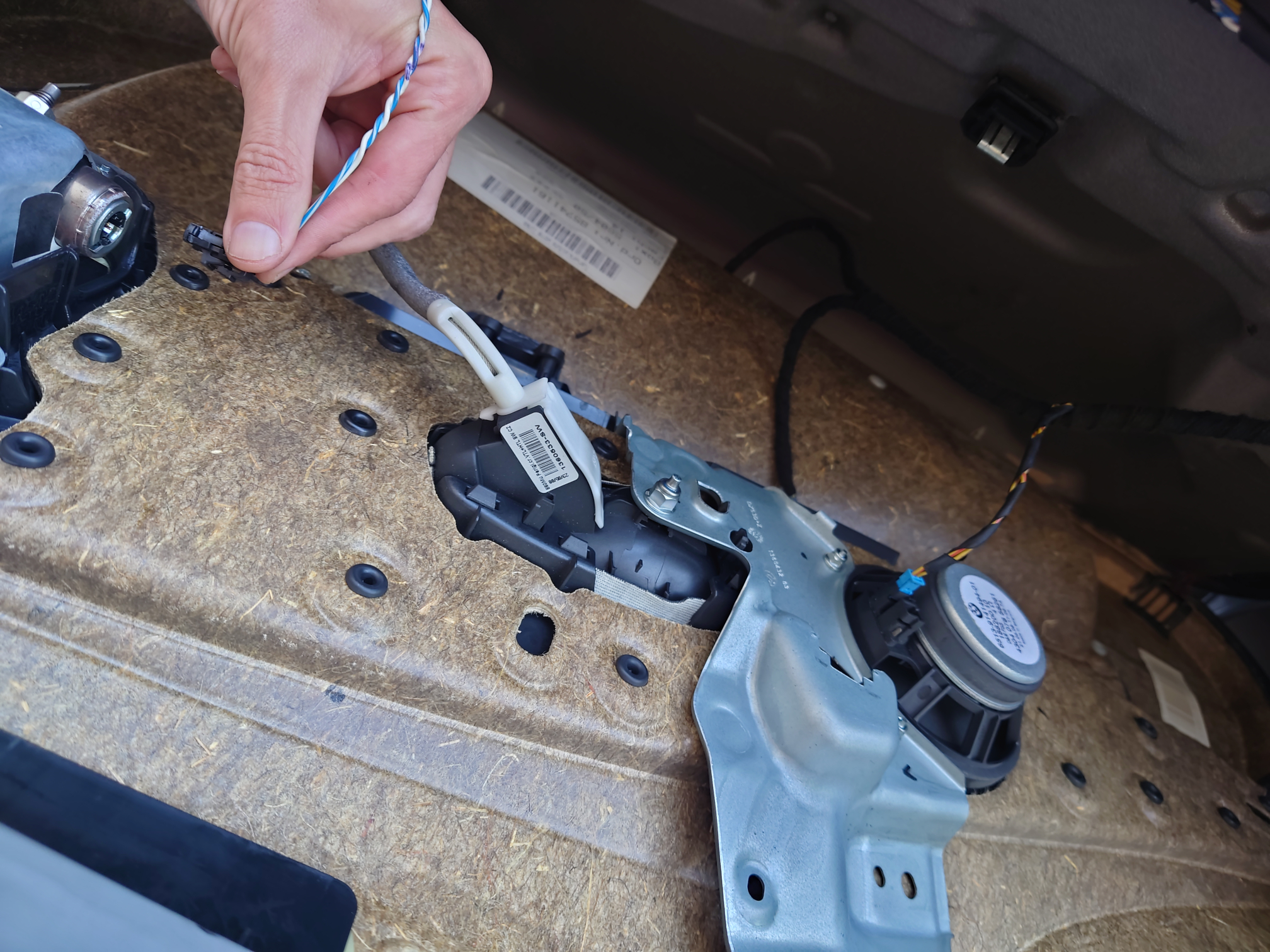

DOOR CARD 6

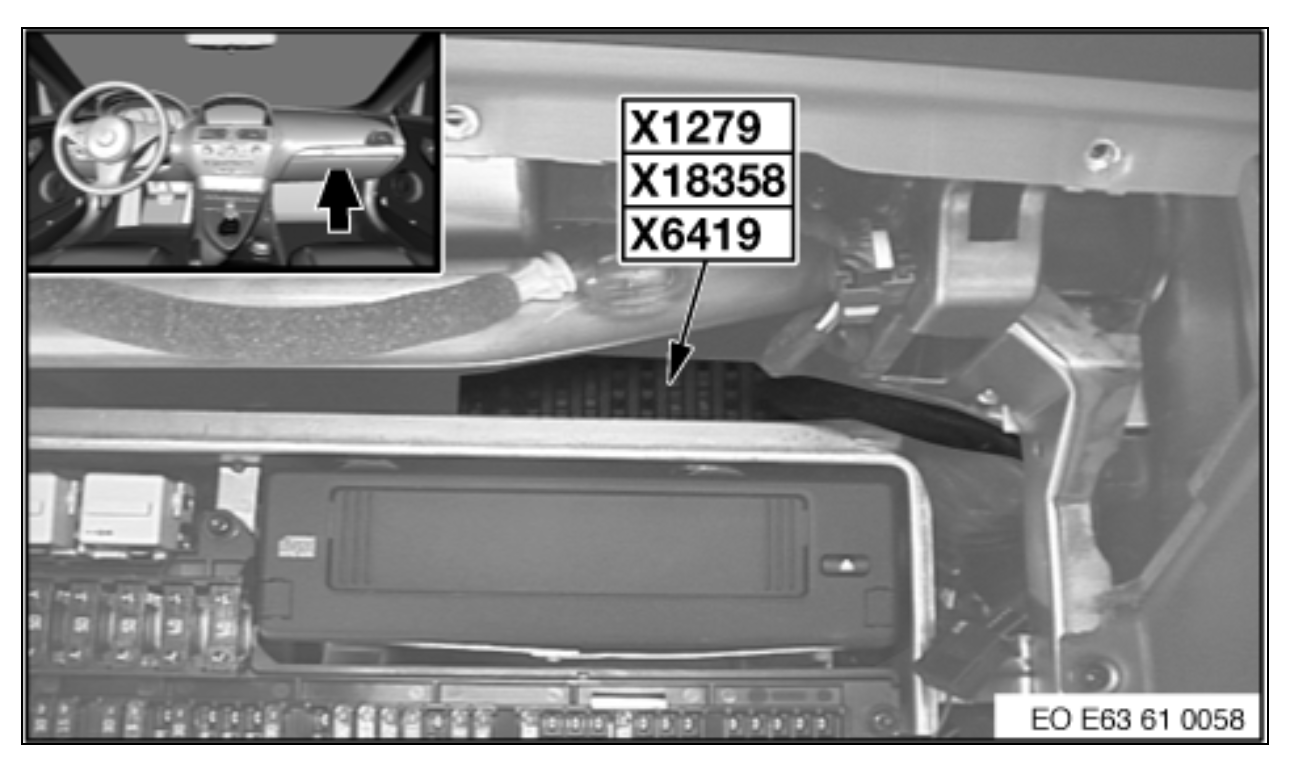

X6419 FUSE41 LEAD DUMMY ADAPTER

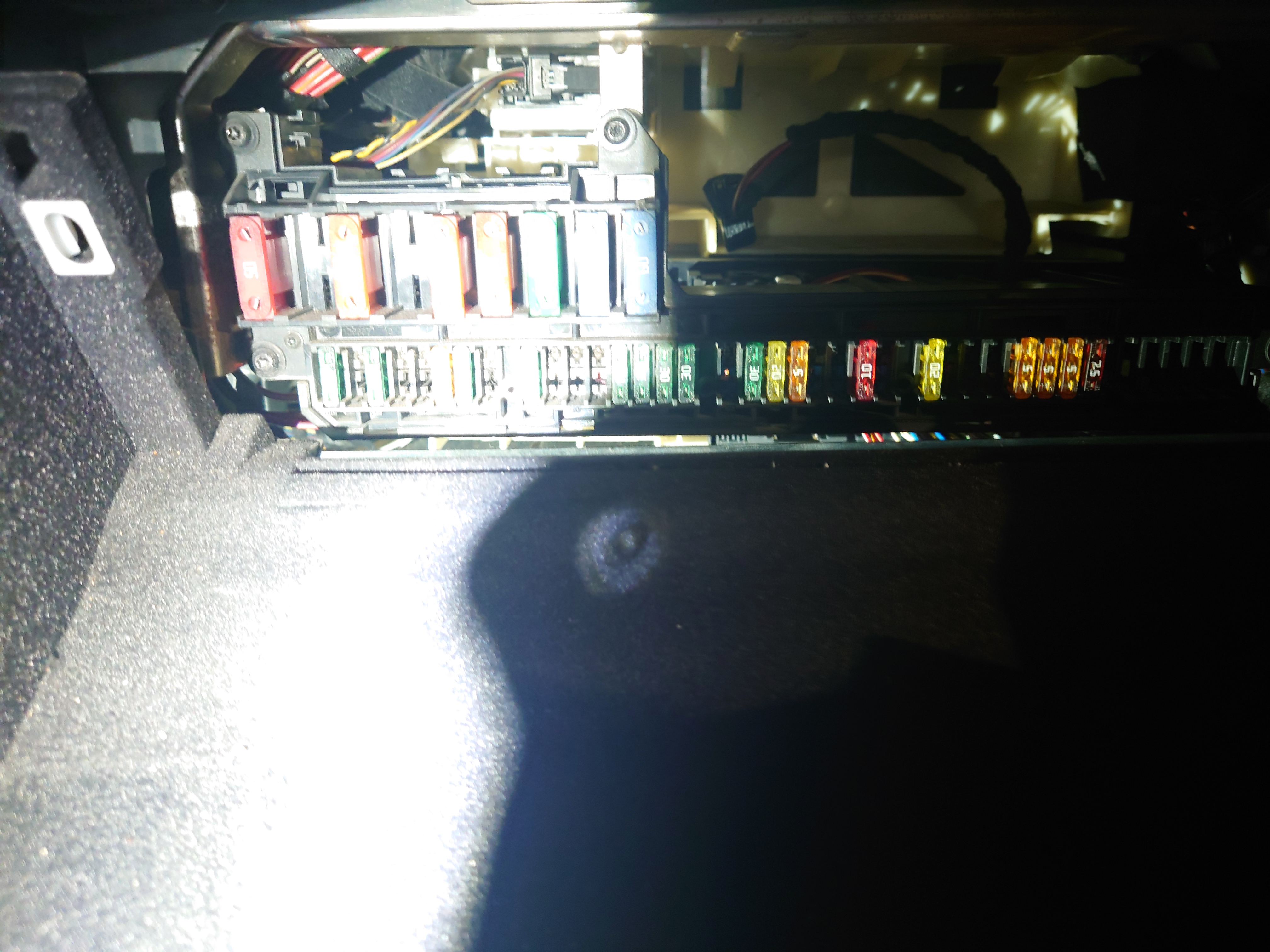

FUSE F32 RED 10A

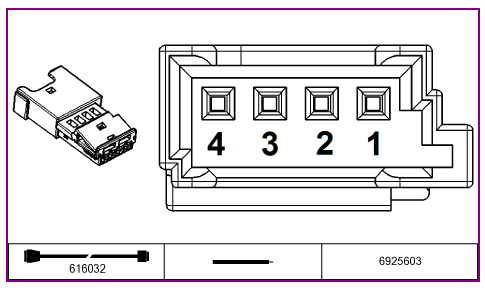

MIRROR CONNECTOR PINS
DOOR SWITCH 001

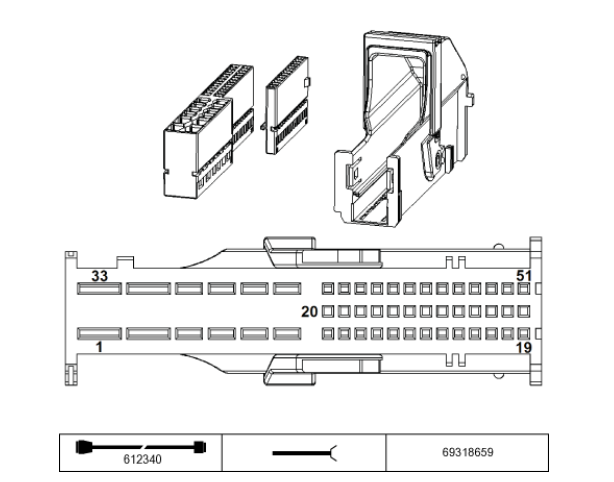

BGM X16760 CONNECTOR PINS

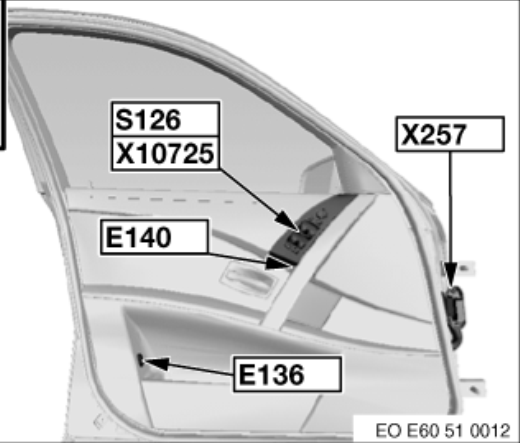

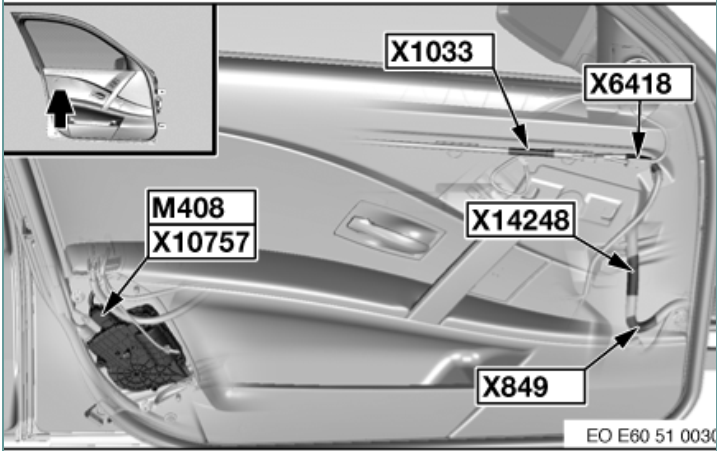

DRIVER DOOR CONNECTORS

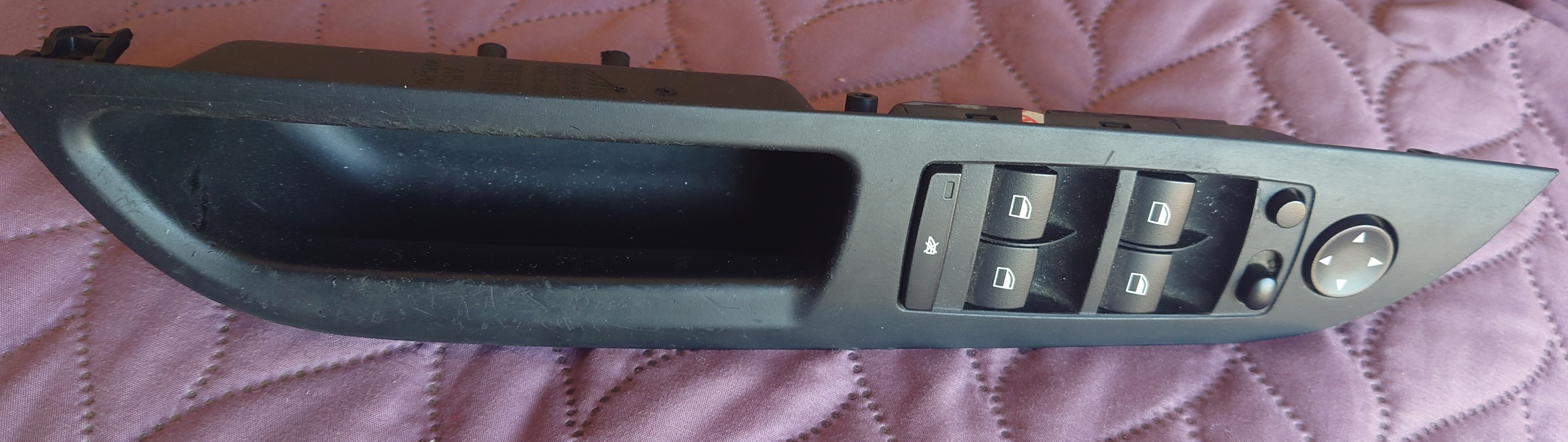

DRIVER DOOR SWITCH

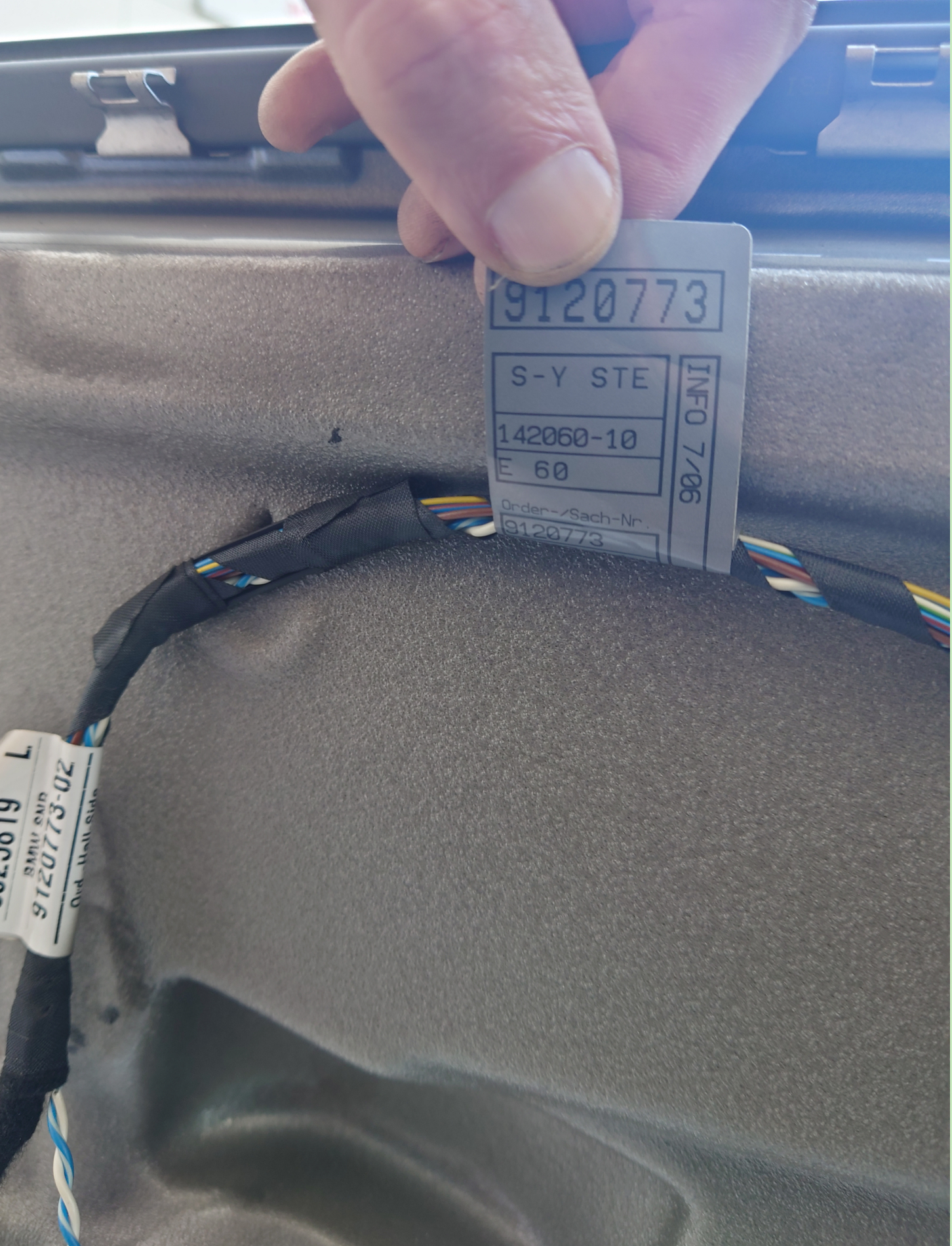

DOOR HARNESS OLD 2

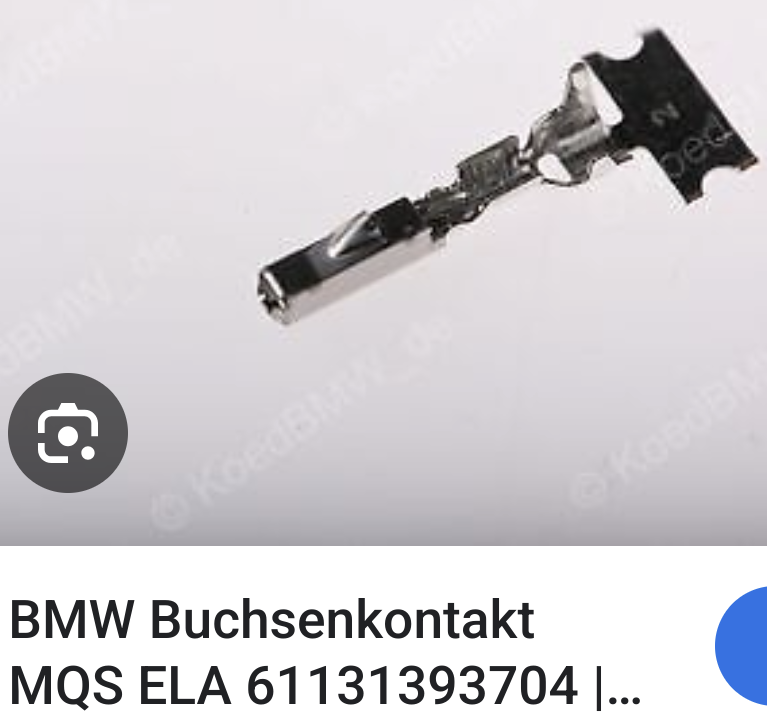

PIN BUSH

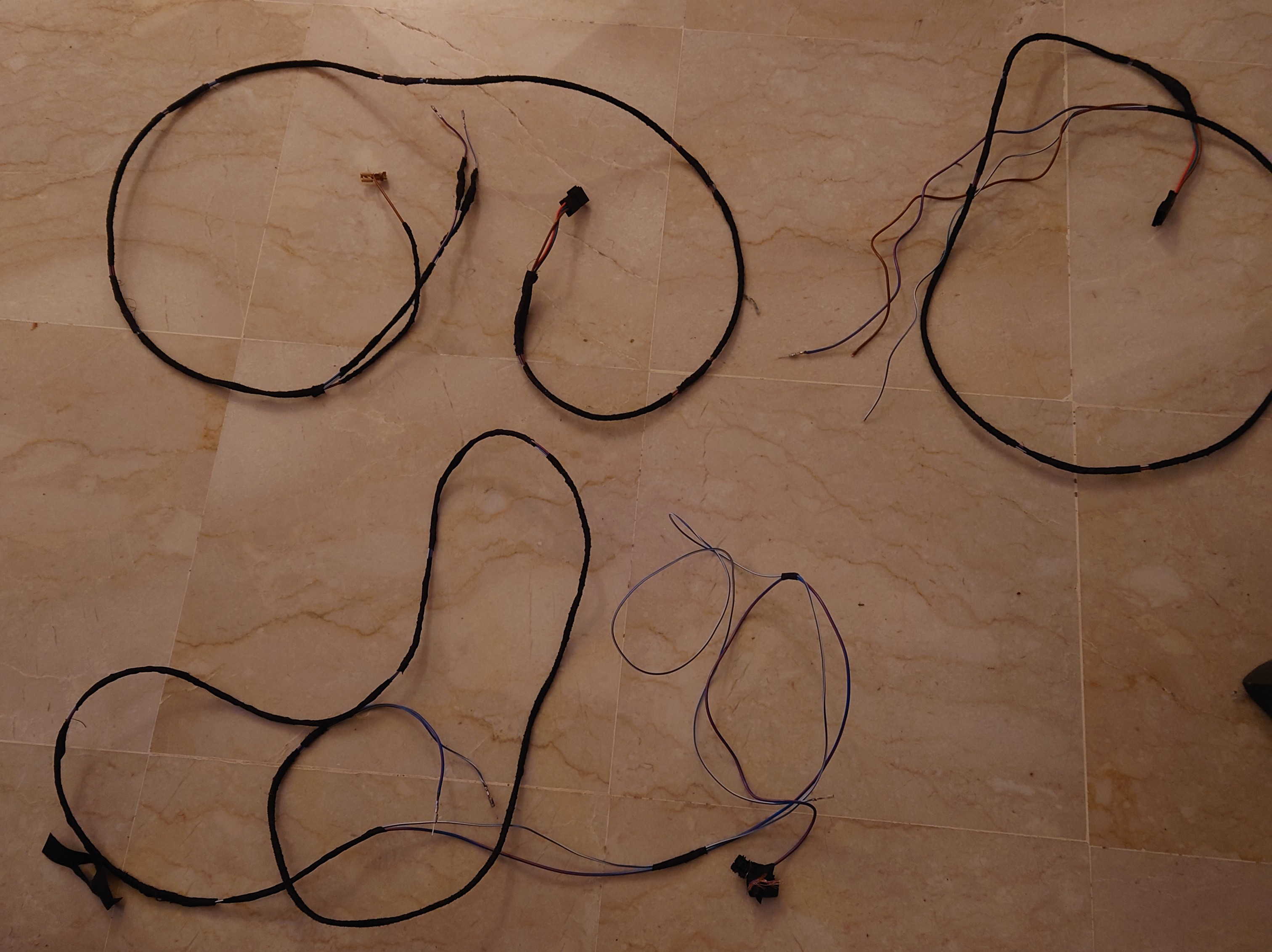

CUSTOM COLORED WIRE HARNESS

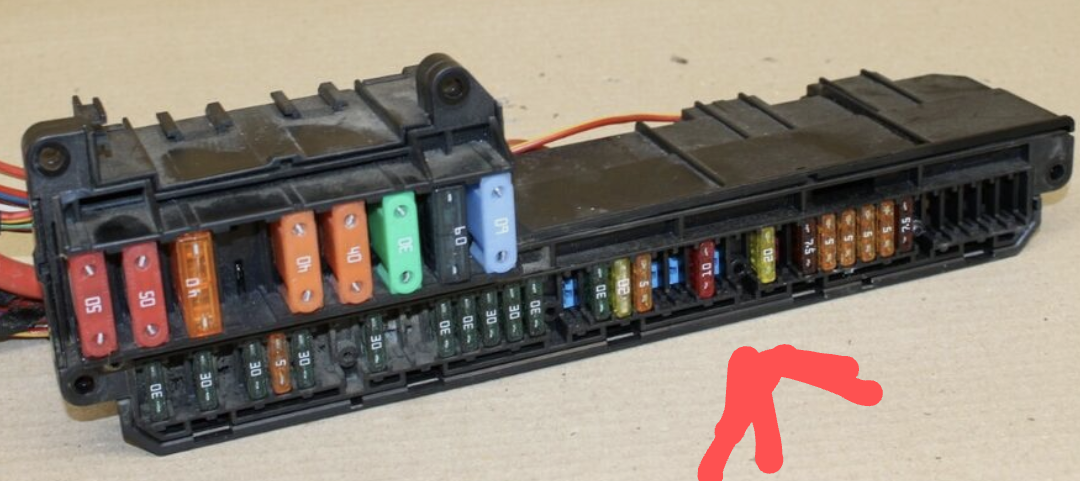

F32 FUSE

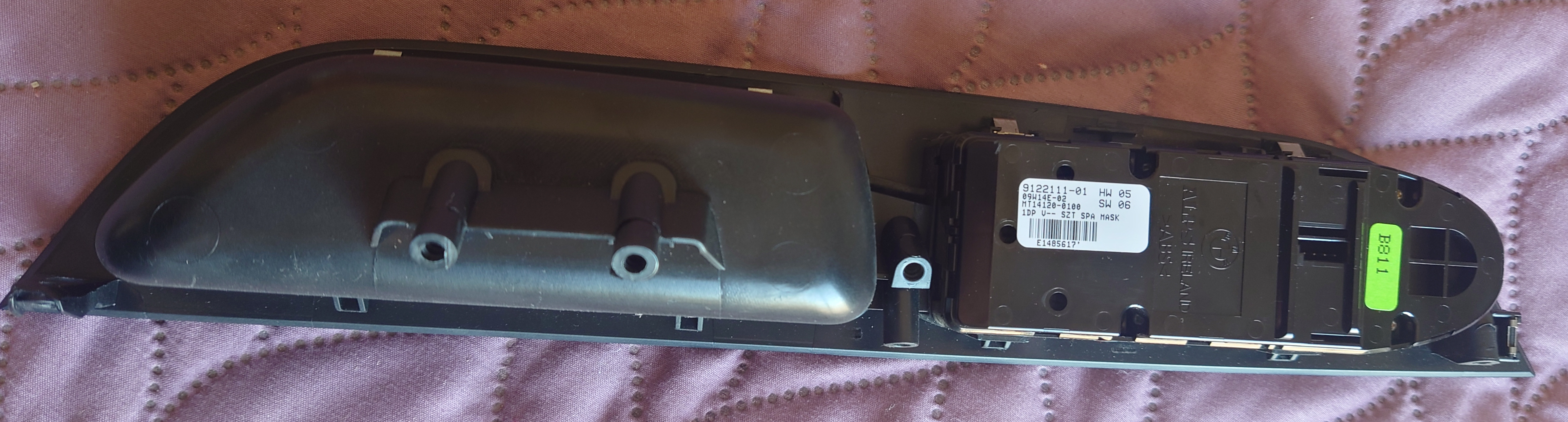

DOOR SWITCH 002

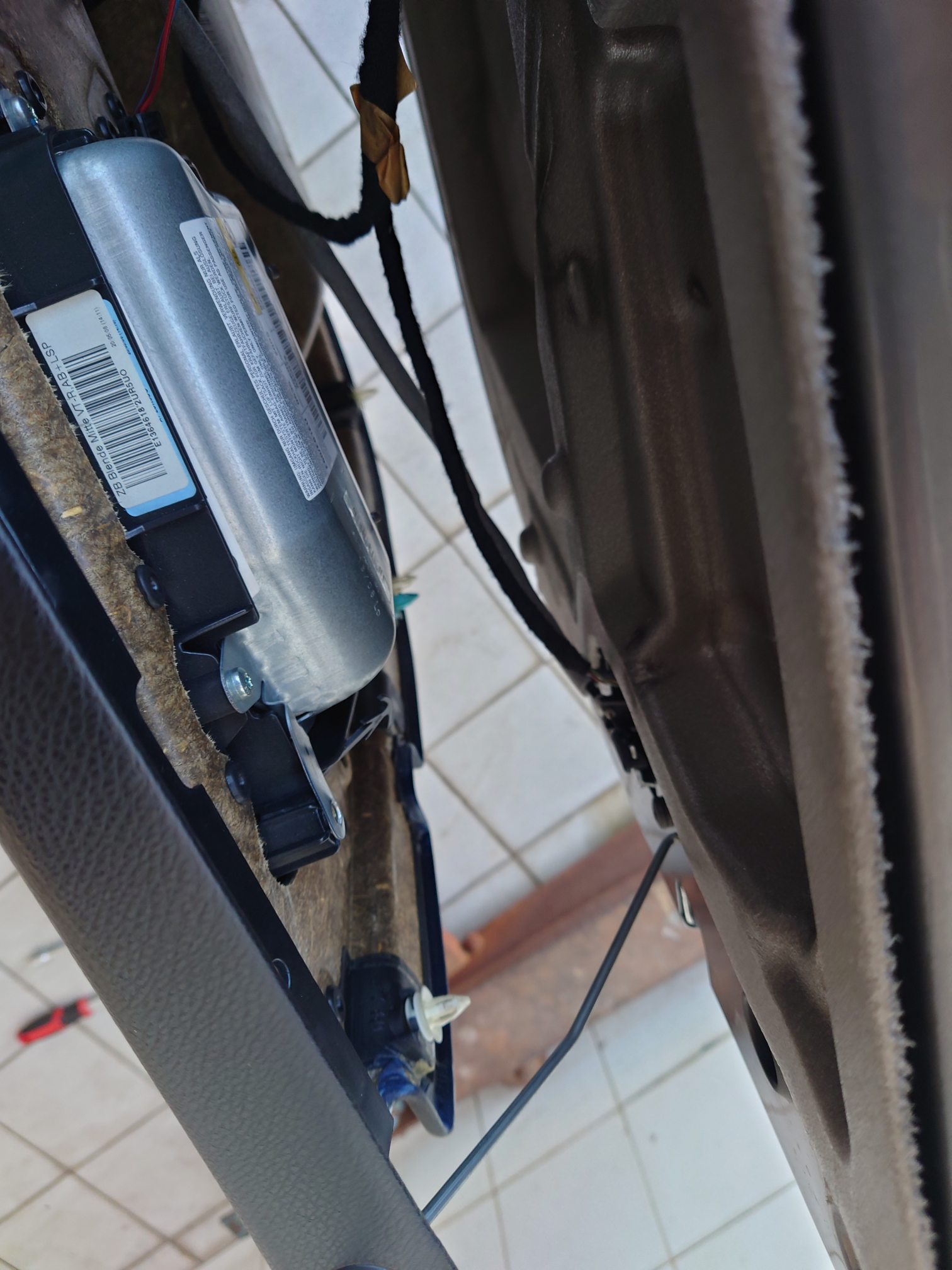

DOOR CARD 2
