The ZF8HP45 gearbox can be sourced from any E-series or from any F-series (N52/N20/N55 engines only) with the condition of using a mechatronics unit from E-series

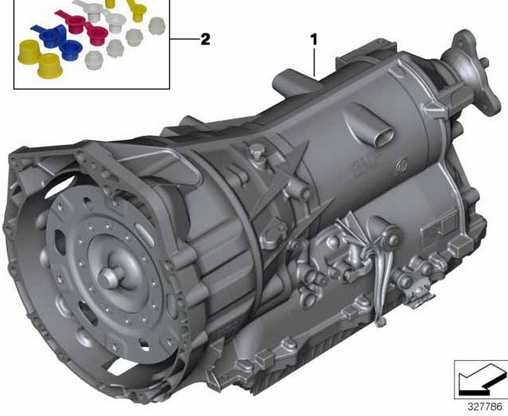

F10 N52 8HP45

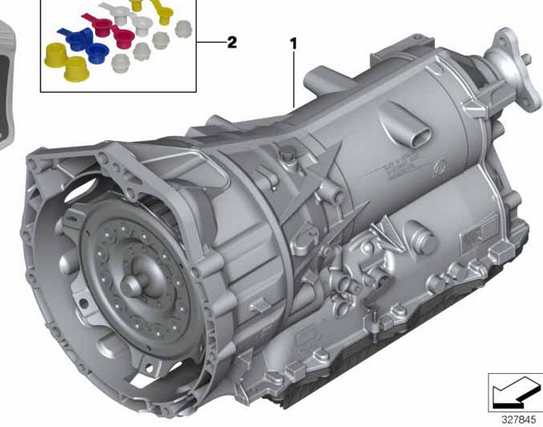

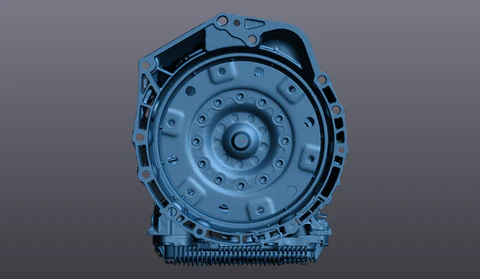

F30 N20 8HP45

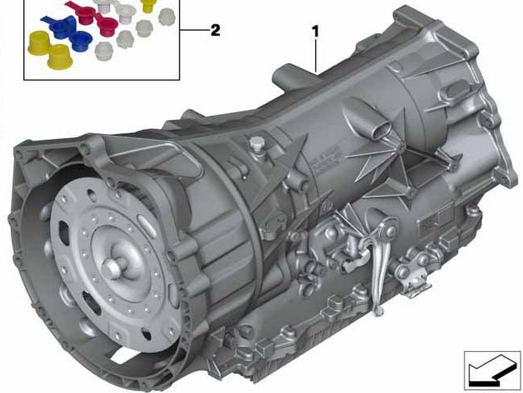

F15 N55 8HP45X XDrive

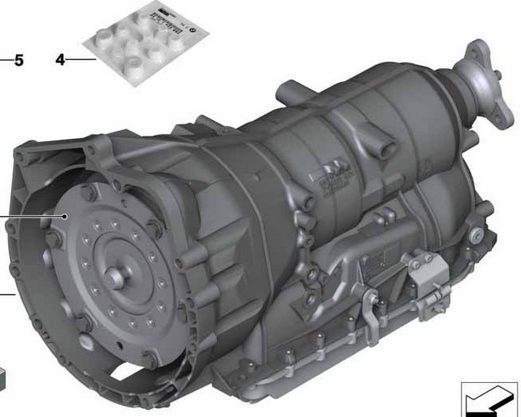

E60 N52 6HP21
More identification information is to come soon.
The 8HP transmission requires EWS4 for Immobilizer Serial Number (ISN) compatibility. Hopefully, the BMW E60 LCI has CAS3 with EWS4 architecture.
The 8HP transmission requires DSC8 .

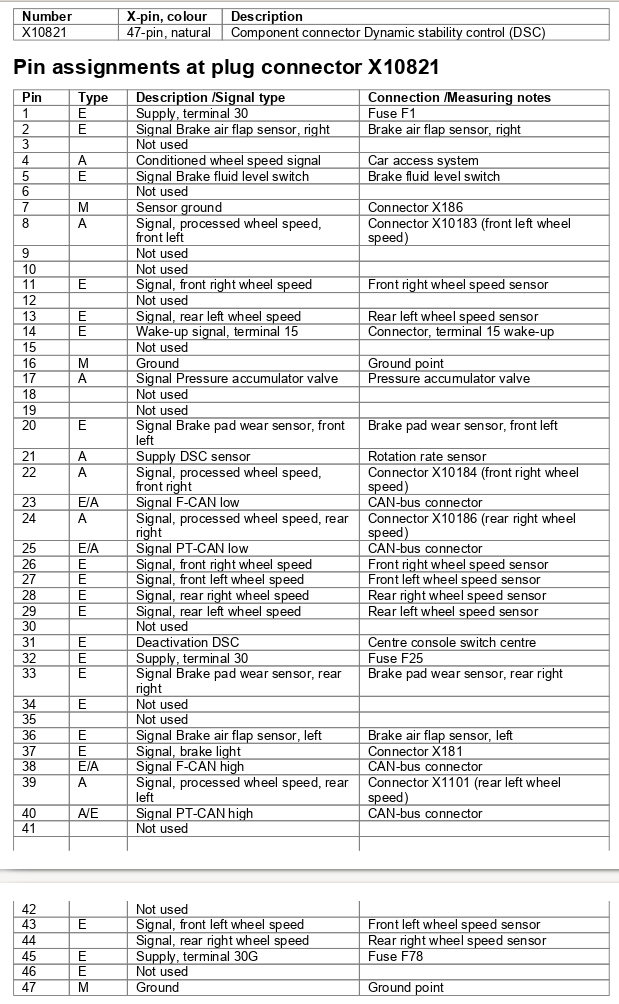

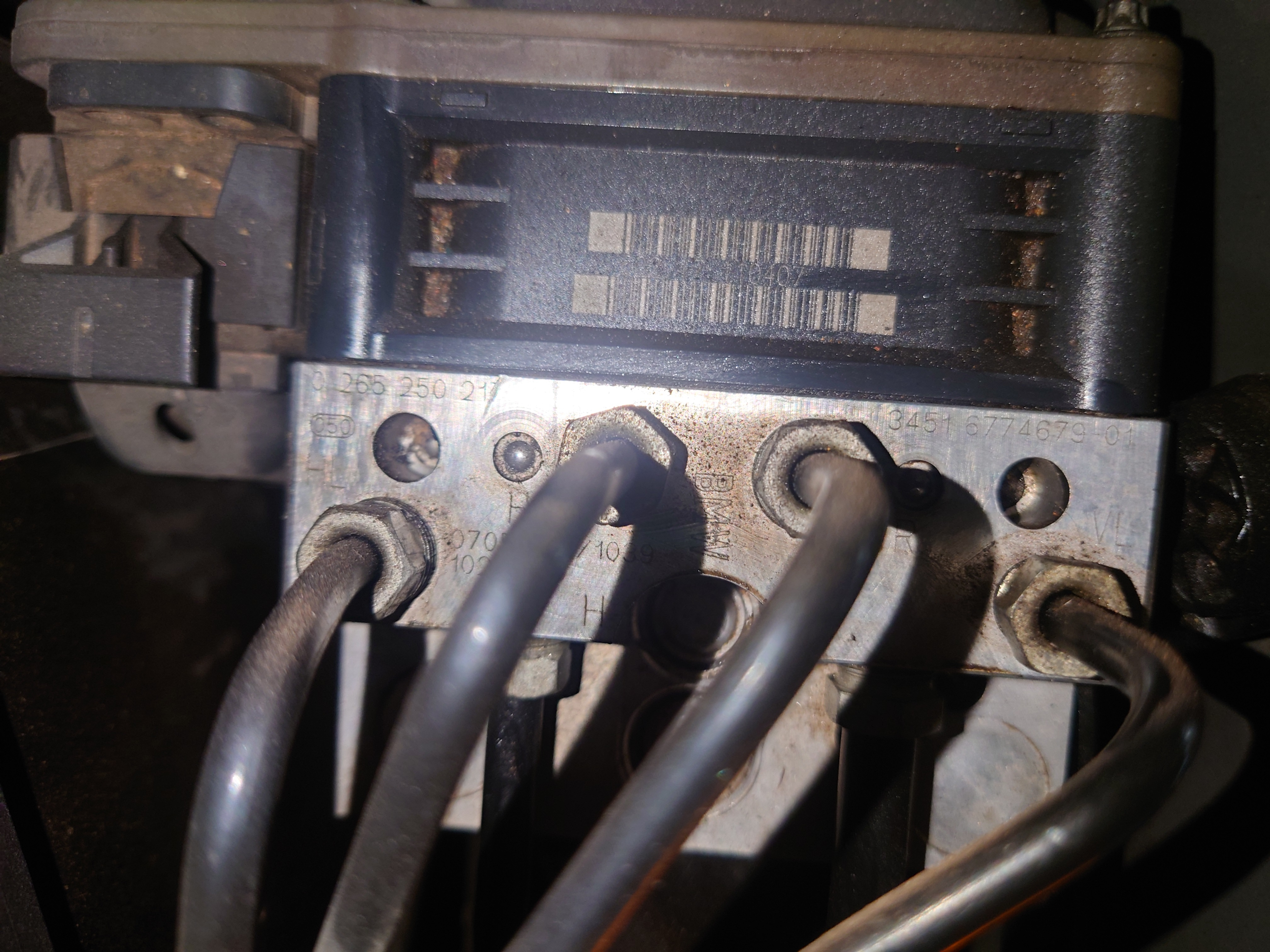

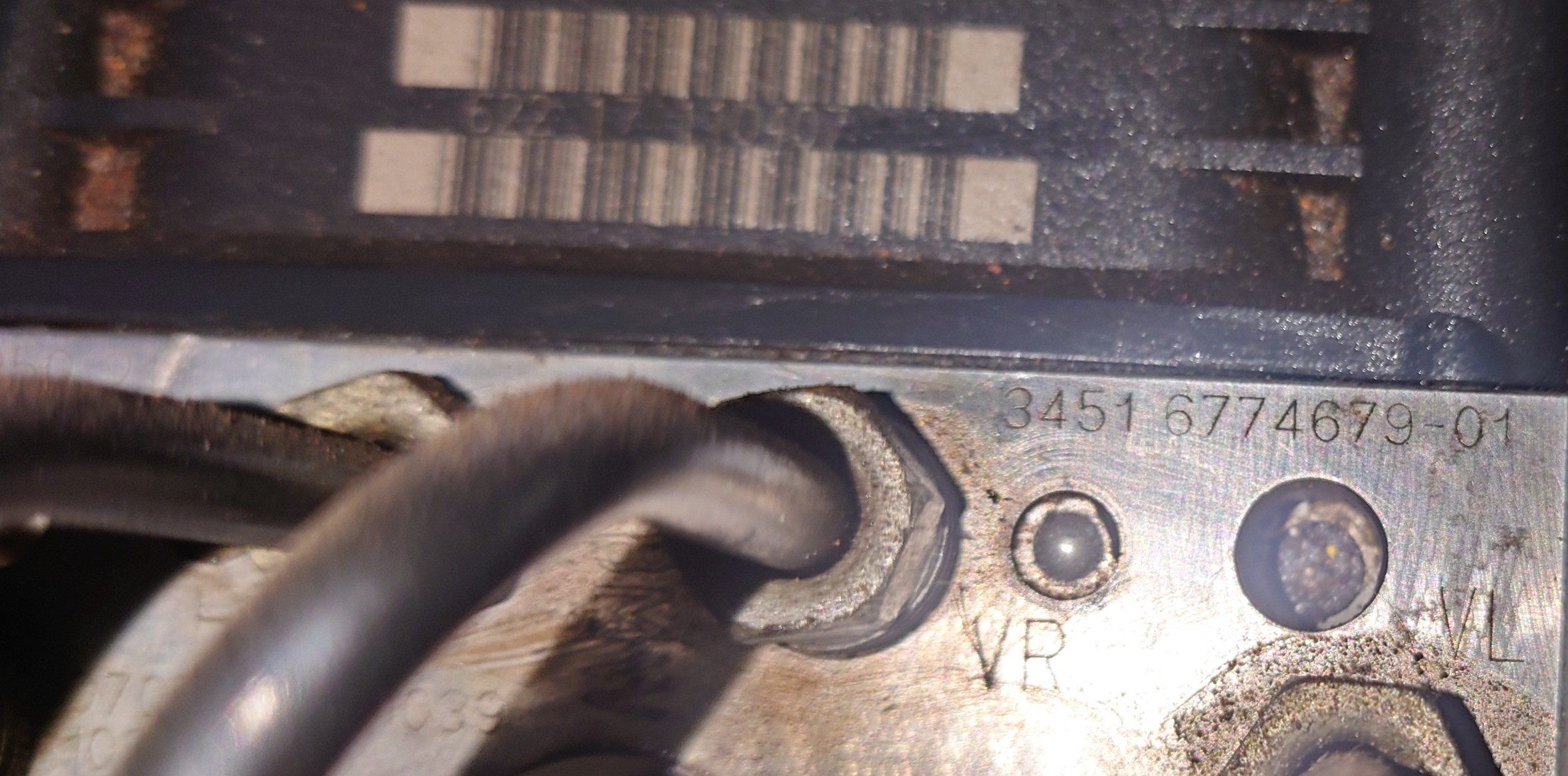

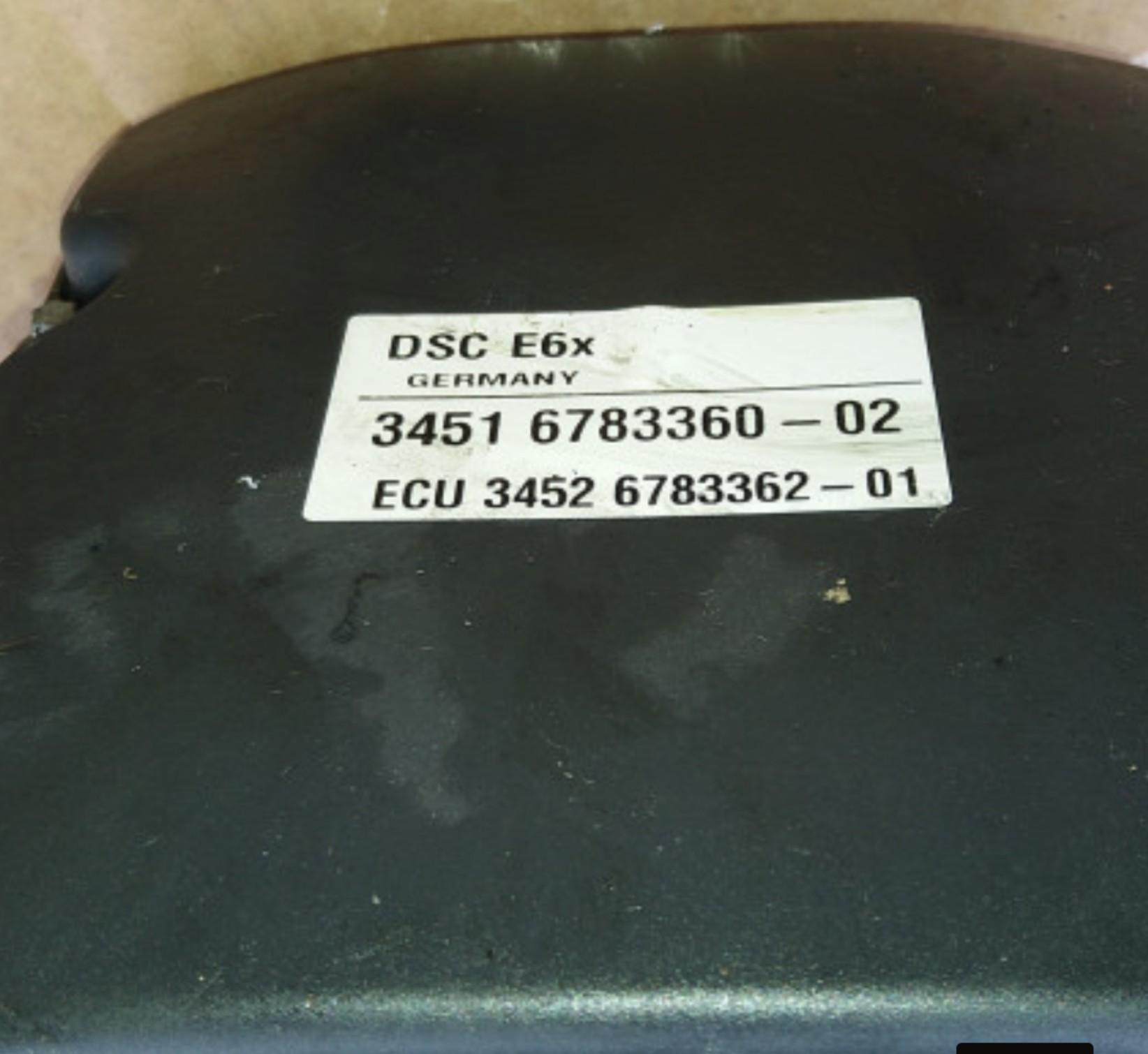

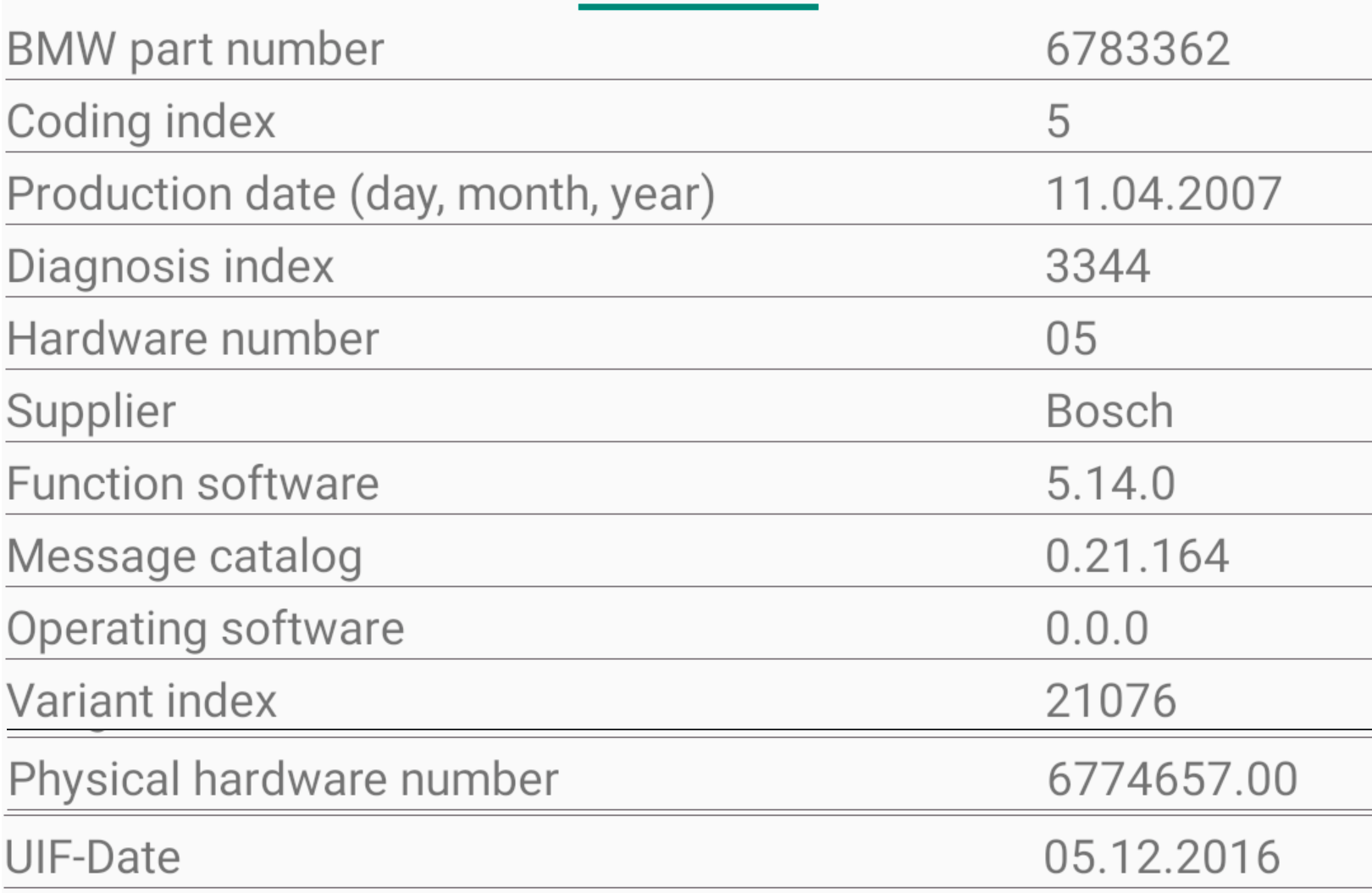

BMW E60 LCI (starting 09/2005) equipped with 6 cylinders engines has DSC8+ module with (47 pins and the 38 pins version in some models)

(BMW E65 has DSC 5.4).

Unlike the E9x/E8x/E7x platforms which use a junction box JBE, in the E60 LCI platform the gateway to the PT-CAN is the Body gateway Module (KGM).
N52 DME with MSV70 is not compliant. You need to have N52 DME with MSV80, Which BMW E60 LCI has

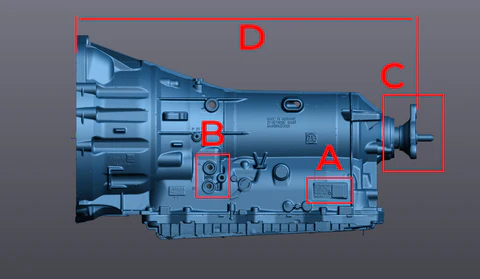

The 6HP21 and 8HP45 transmissions have the same overall length, making them compatible in terms of chassis fitment. Some 8HP variants require an additional hole on their engine mating surface, to be drilled or the top existing one elongated.

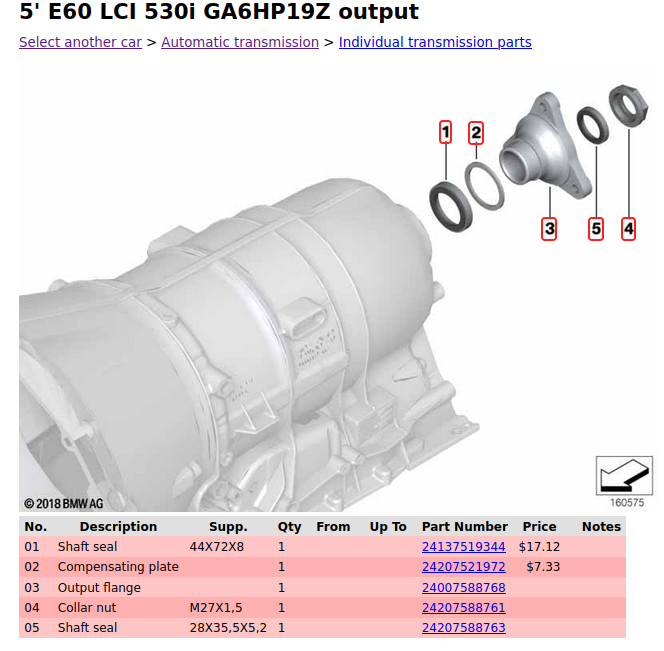

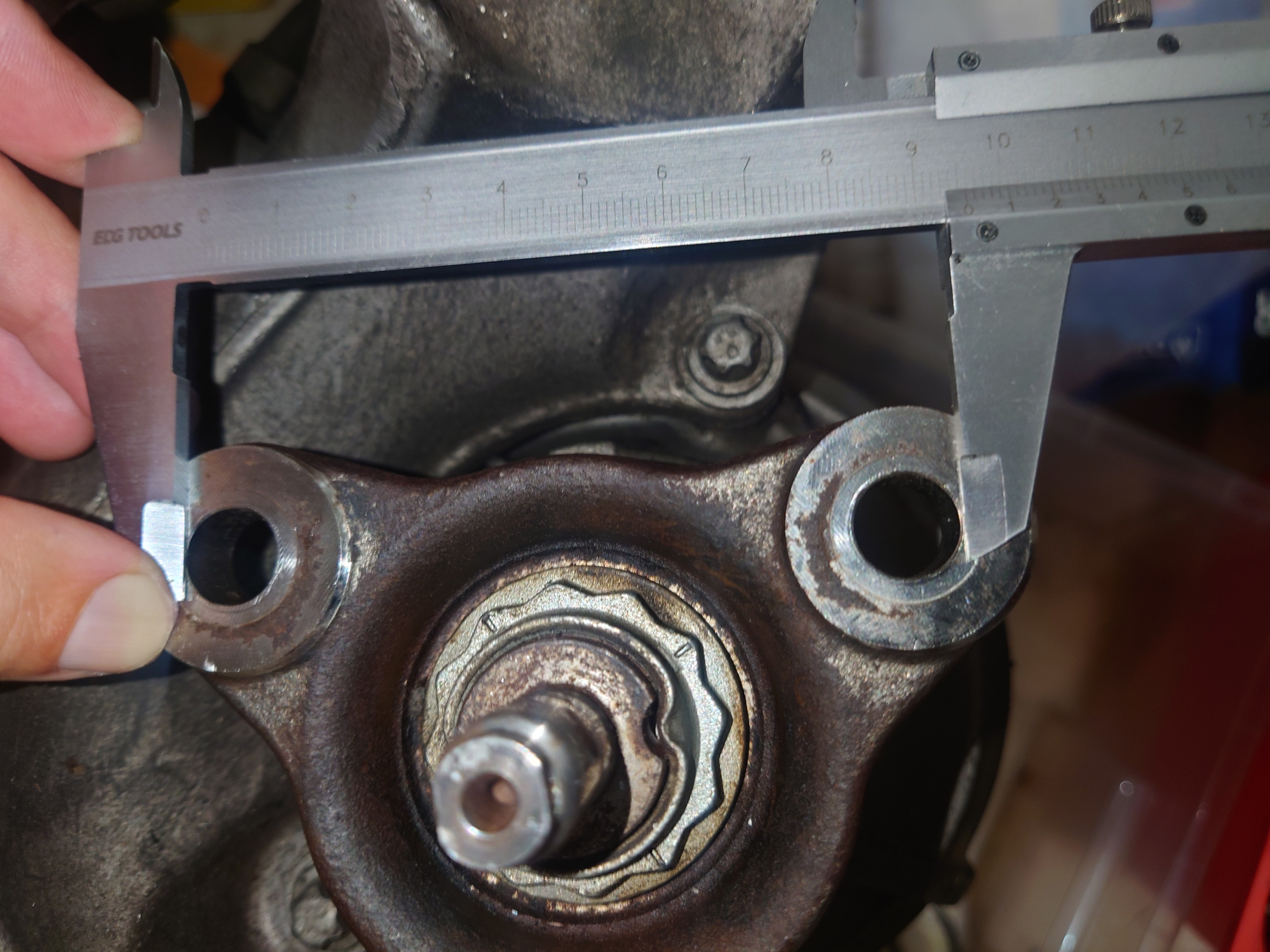

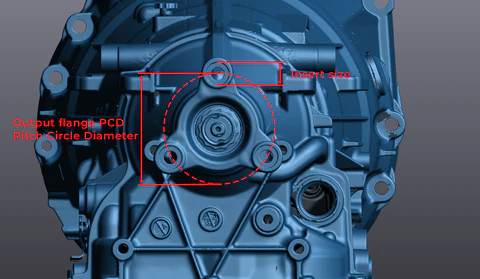

The rear output flange and mounting points are identical between the 6HP21 and 8HP45 (96mm). However, in some variants ( 8HP45 N55 - 105mm), the 96mm output flange from a 6HP21 or a 8HP45 must be fitted to the swapped 8HP, in order to use the same front driveshaft.

The flange collar nut on both 6hp and 8hp is 34mm. Use a deep 34mm 12 point socket. Tightening torque is 60nm.

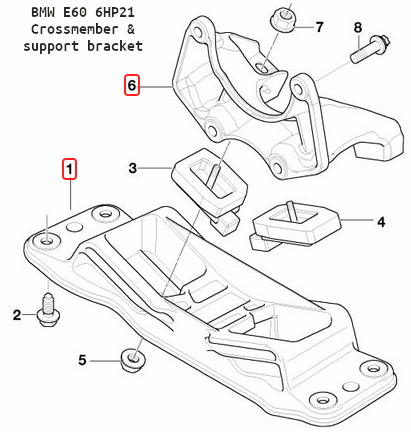

The rear mount is an easy adaptation (Reusing the E60 6HP21 crossmember), and there are several OE or aftermarket crossmembers that might bolt in.

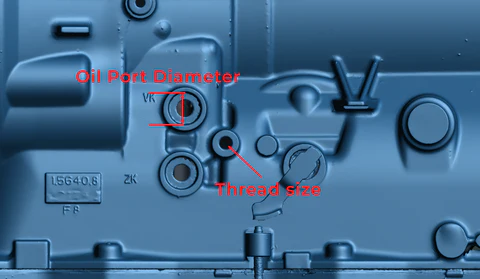

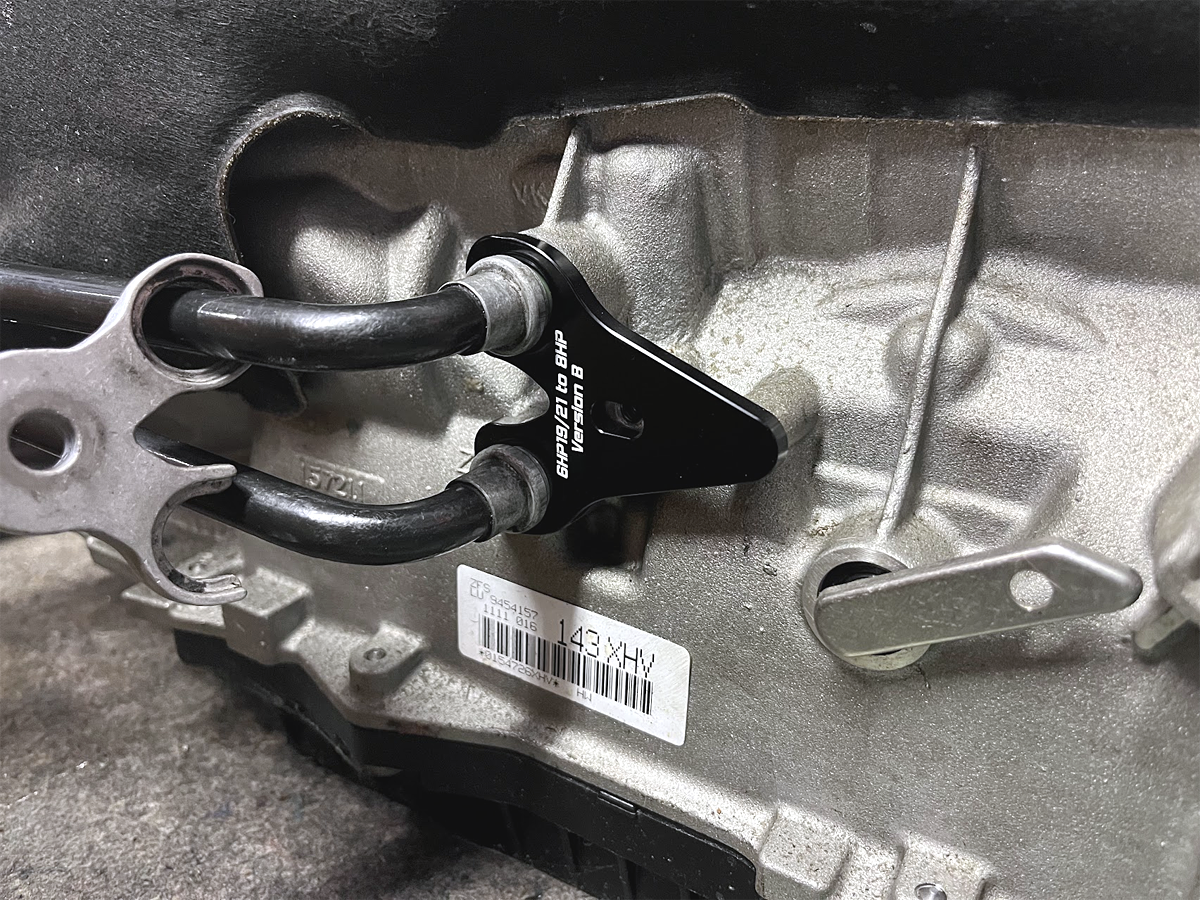

The cooler pipes ports are of different sizes (11.6mm, 13.6mm, 17mm for 6hp21) vs (18.6mm for 8hp45), requiring modification (adapter)

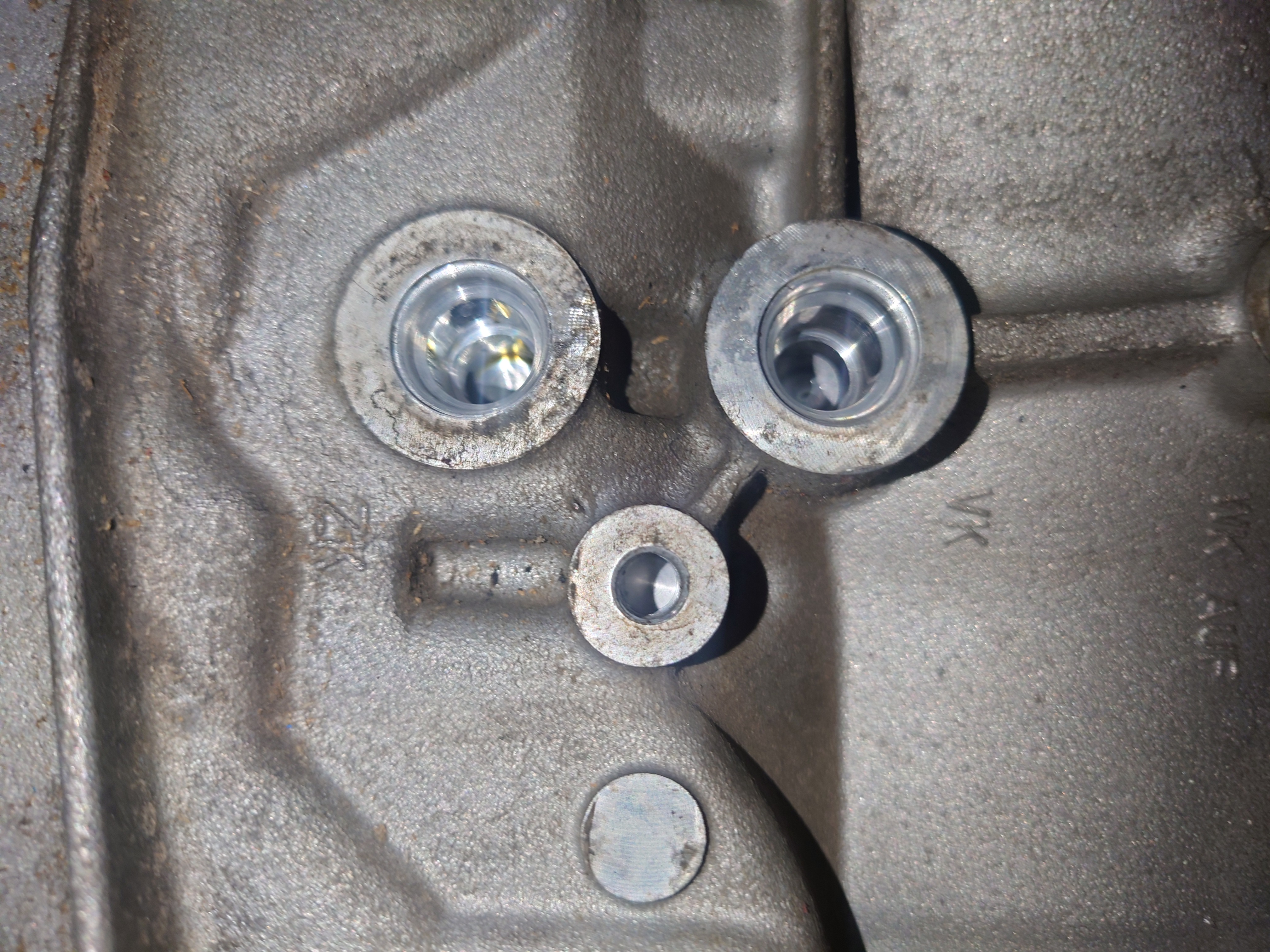

Below is a picture of 6HP21 cooling ports:

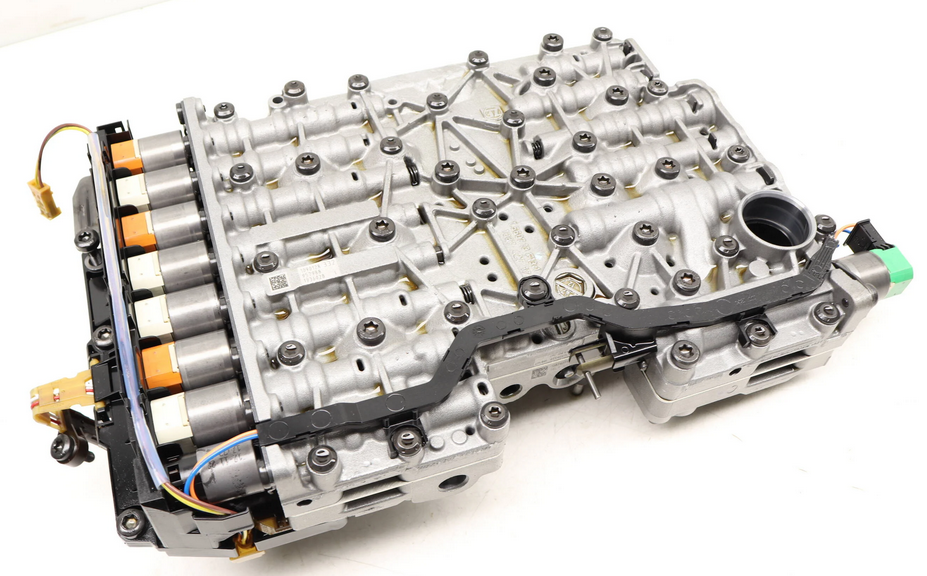

Mechatronic Unit

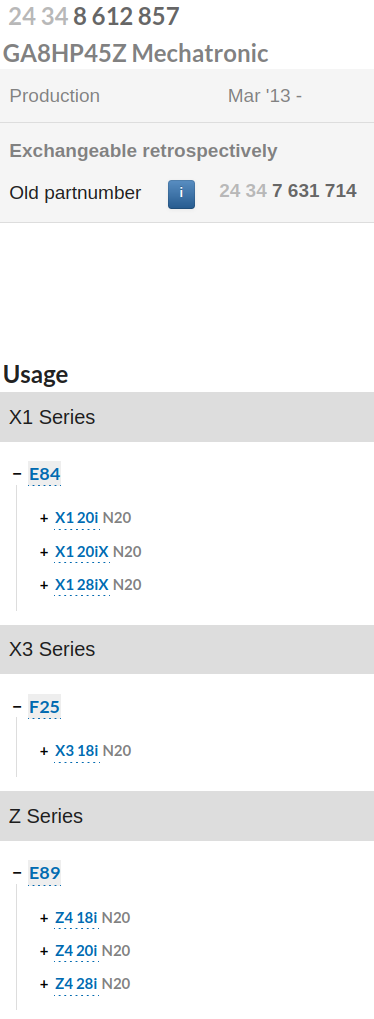

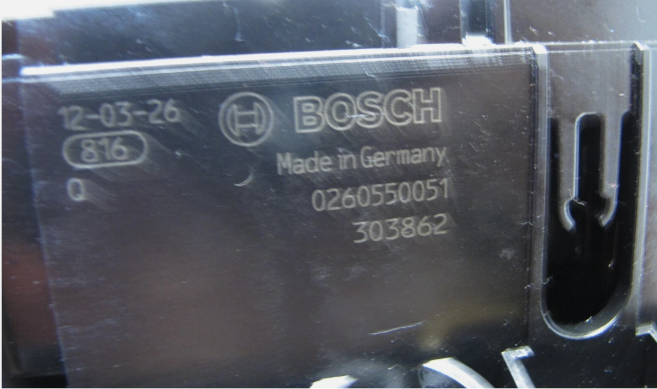

Mechatronic unit Bosch TCU part is either 8HP45HIS Bosch 0260550075 or 8HP45 Bosch 0260550051

The Mechatronic Unit (TCU) (any of the listed BMW part numbers) must be fetched from one of the vehicles below:
2434 7 631 714
2434 8 612 857
2434 8 687 812
2434 5 A13 157
2434 5 A13 158

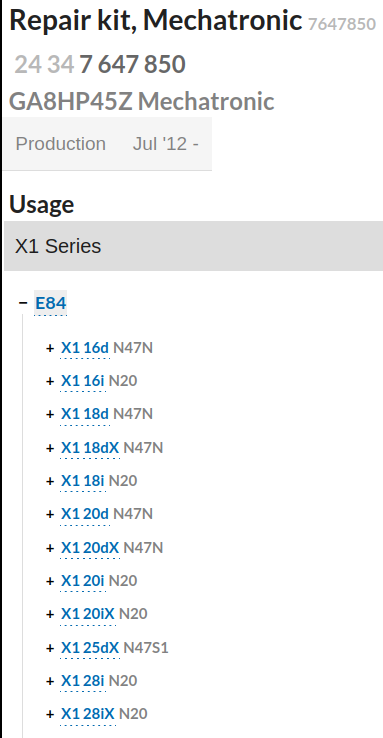

2434 7 647 850
2434 5 A13 159
2434 5 A13 160

Torque Converter

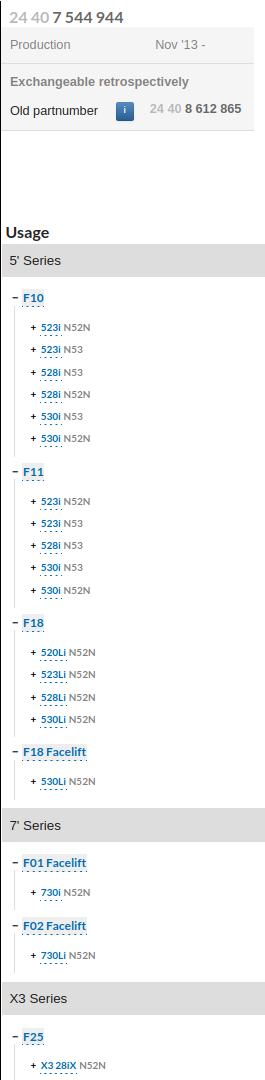

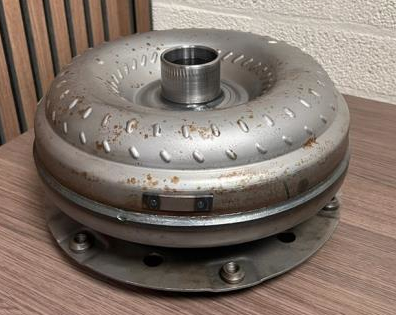

The torque converter with the specified stall speed for N52N (2440 7 544 944 or 2440 8 612 865) must be sourced from one of the vehicles below:

Using a TC from any N55 vehicle (8HP) in case of a boosted/charged N52 is recommended

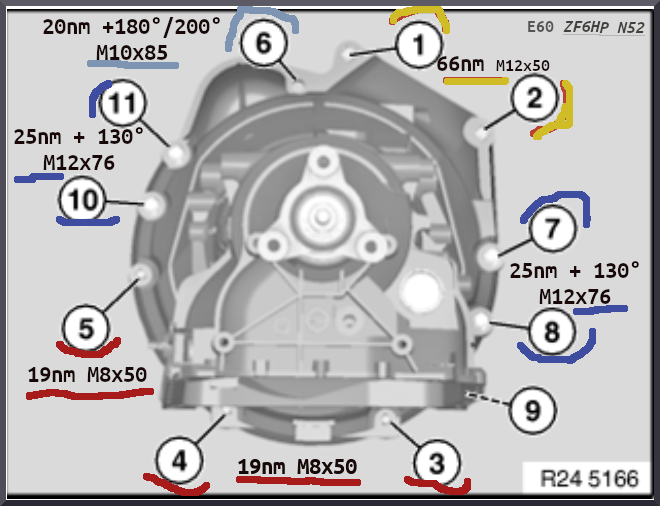

Respecting the torque specifications for mating the transmission to the engine, is critical

E-Shifter

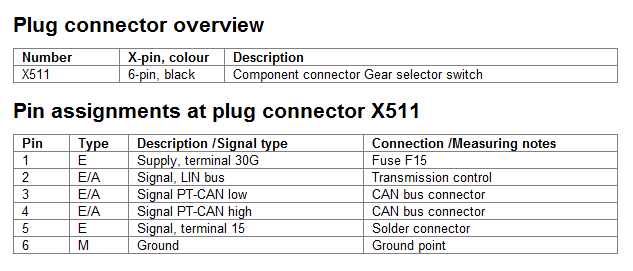

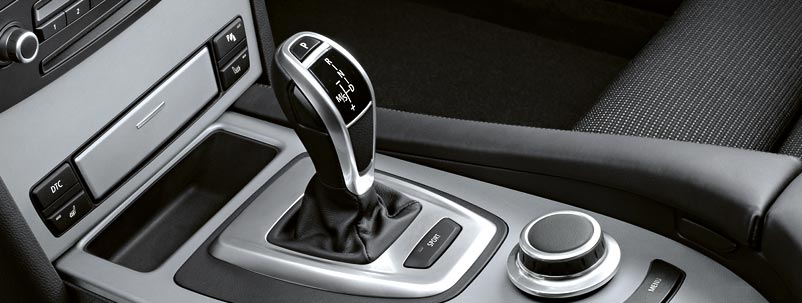

The E60 LCI or E70 E-Shifter with 6-pin connector, is fully compatible and no modification is required.

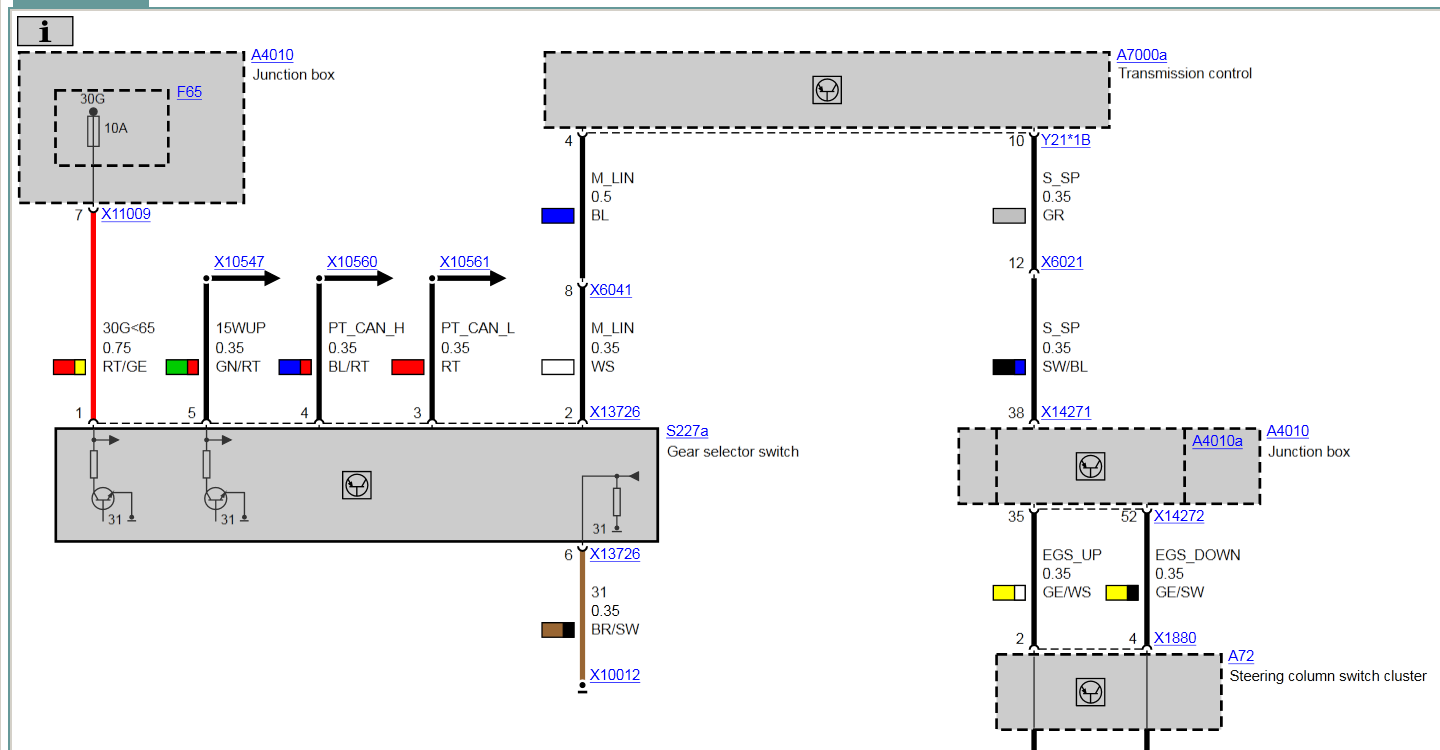

Otherwise, the DCT (6131 9 213 647) or 8HP shifter with 8-pin connector (not the 10pin 61139132571). In this case, rewiring the existing 6 pins connector pins to the new 8 pins connector is necessary:
- 8 pins Connector: 6113 6 954 526
- 6 MQS pins 6113 6 931 880 or 6 already crimped MQS pins 6113 0 056 962)
- 6 color-coded automotive wires (3 meters each)
- 6 pins male socket connector (6113 6 913 635) and 6 MQS male pins 6113 0 005 198 or 6113 0 070 562
- Crimper tool eventually: 8330 0 496 850

EGS Connector Re-wiring

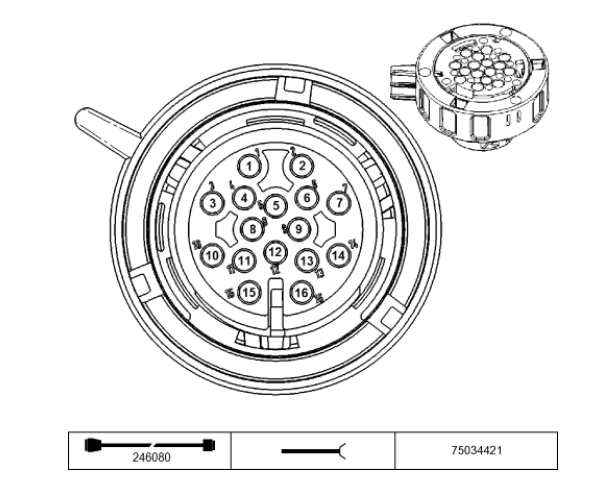

ZF6HP21 Connecter overview

ZF6HP21 Connector

Connector 16pins

Go Up

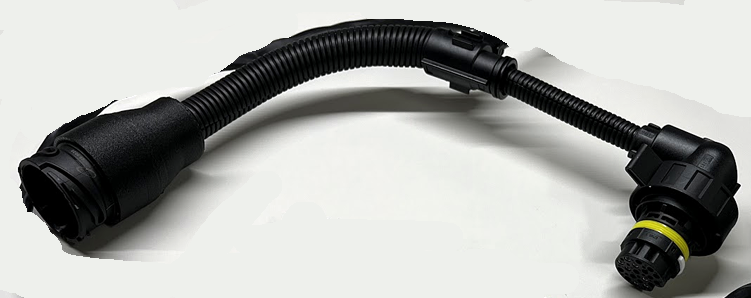

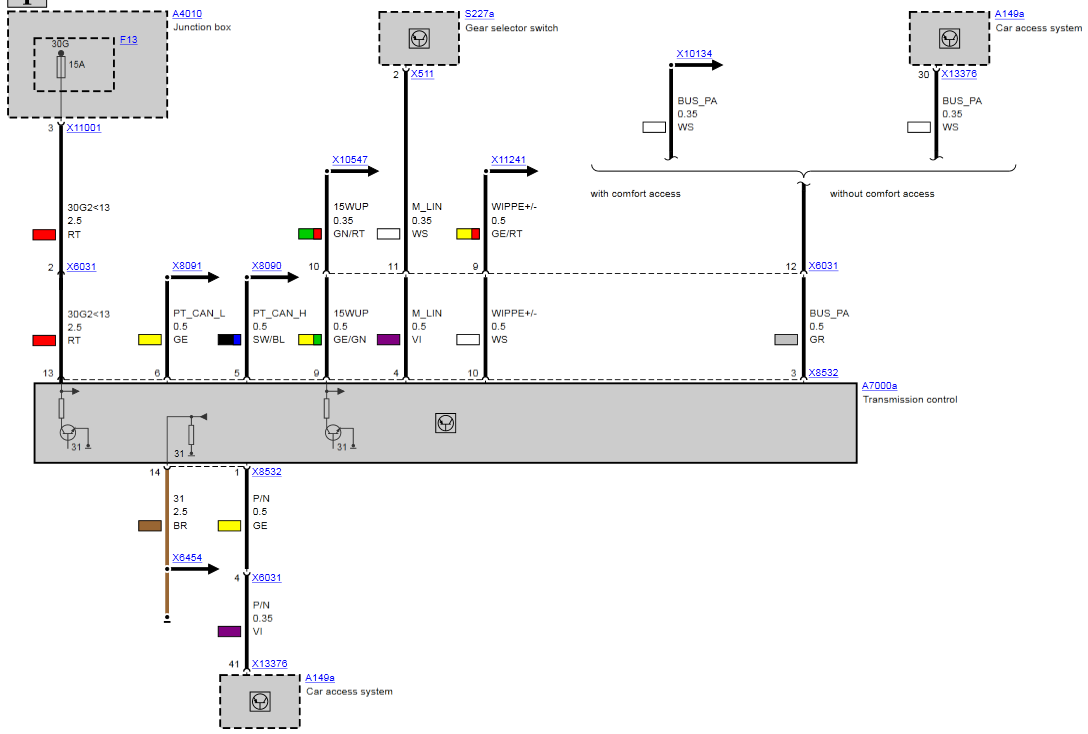

For rewiring, creating an adapter is the best solution, by using the OE female connector and a custom male socket.

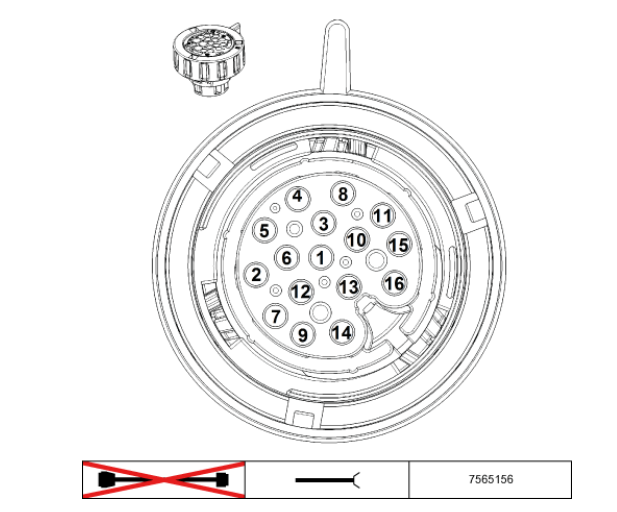

ZF8HP45 Connecter overview

ZF8HP45 Connector

Connector 16pins

Go up

8HP ISN Reset

Once the rewiring and connection to the 8HP is done, the EGS TCU must have its ISN reset

BTT 8HP ISN Reset tool

Update the 8HP45 TCU Firmware

Using an updated Dcan cable along with WinKFP, ISTA-P Expert mode or BTT TQ, with one of the ZUSB firmwares below

Sport Button

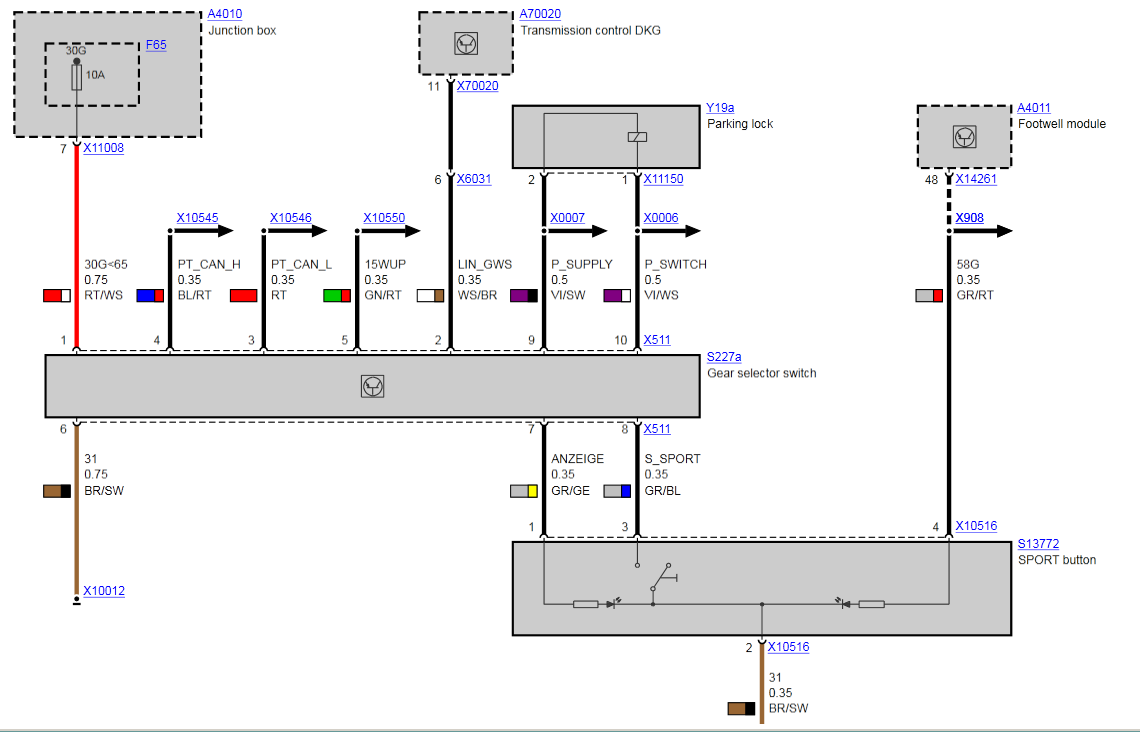

If the car is not equipped with Sport E-shifter, the user can still optionally retrofit the M5 (61317834518 / 51168045434) or aftermarket 4-wires sport button to the center console (SZM.)

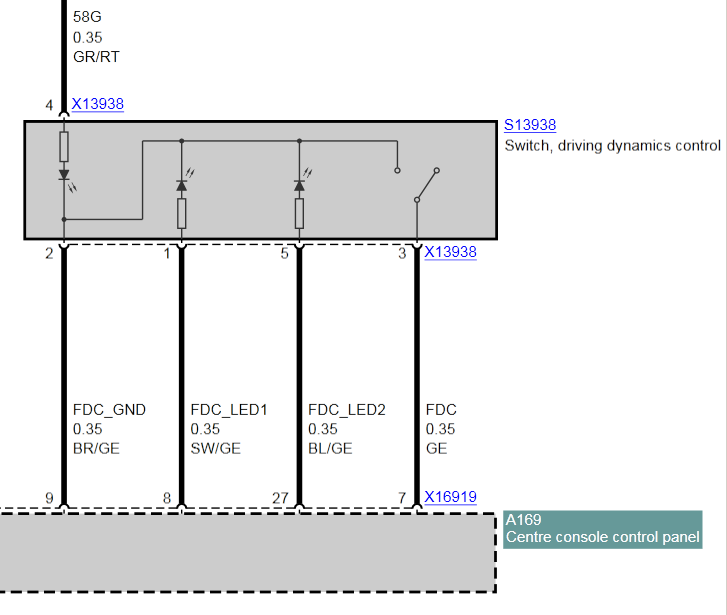

SZM Pin 9 to switch pin 2 is ground (Brown/Yellow)
SZM Pin 7 to switch pin 3 is signal (Yellow)
SZM Pin 27 to switch pin 5 goes to led light 2 power wire (E60 M5 only) (Blue/Yellow)
SZM Pin 8 to switch pin 1 goes to led light 1 power wire (Black/Yellow)
Switch Pin 4 goes to 12Volts power wire (Gray/Red) - Terminal 58G

CAS Coding

Beforehand, plug a scanner like ISTA+, DeepOBD or Protools in order to make sure the EGS is recognized. Assert you can display clutch adaptations for example.

Deactivate: AUSWERTUNG_P_HW (Evaluate transmission Park/neutral signal from EGS)

Deactivate: ABZUGSPERRE_PLOCK_C6 (Engine Start only with EGS in Neutral/Park). Normally this option is already inactive for the E60 LCI

Change: GETRIEBE_GAENGE from 6_gaenge to 8_gaenge (From 6 speed to 8 speed)

In case of a CAS error code related to PLOCK, a ground wire (brown) must be added to CAS ECU pin 11.

EGS Coding

EGS must be coded to factory-default.

N/A N/A

KOMBI (Instrument cluster) Coding

Change: DZM_DISP_RPM wert_01 to wert_02 (Tachometer RPM Signal source)

Activate: FDC_VERBAUT (Display Sport Mode) - If sport button is present

Activate: FDC_ID_MONITOR (Monitor Sport Mode) - If sport button is present

The variables above are already set in case of S2TBA VO option

Rear differential final drive

Considering the 8HP gear ratios, it is optional but recommended to change the differential to a lower ratio.

Knowing the F10 N52 differential ratio is 3.38 (wheels 245/45R18) and F30 320i 3.15 (wheels 225/45/R18)

You can calculate the correct Differential gear ratio in here

The sweet spot for a E60 LCI N52 vehicle is a ratio of 3.15, but it was never produced, thus it is recommended to fit one of the following:

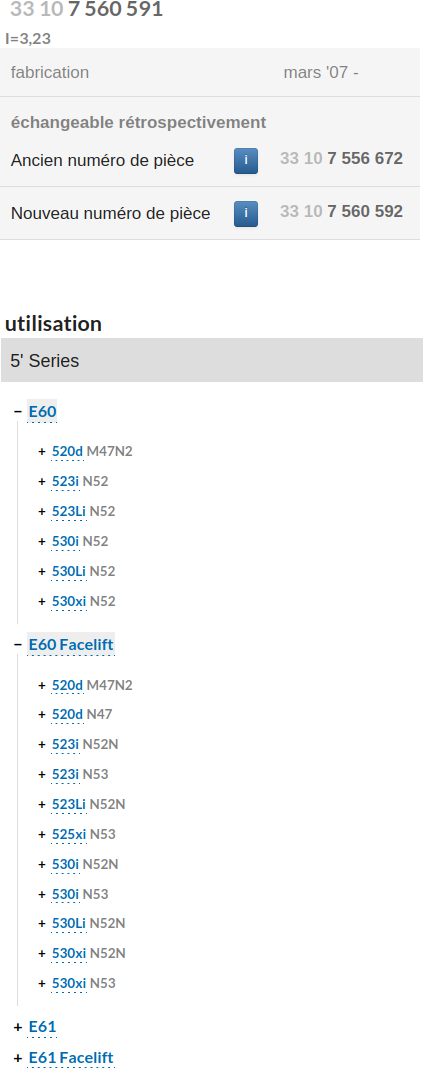

E60 520d 3.23 3310 7 560591

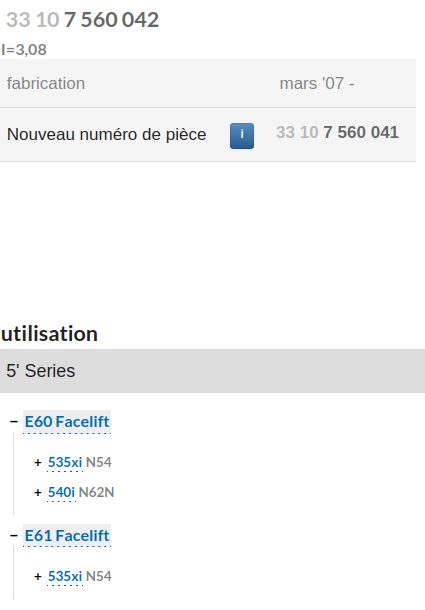

E60 540i 3.08 3310 7 560042

Rear Vibration damper

For 8HP45 equipped vehicles (Especially 1st generation), BMW added some vibration dampers.

In the context of this conversion, the user might optionally look at different vibration dampers and install the one with the corresponding dominant vibration

Go for this step only if drivetrain vibrations are felt after the swap (Especially when driving at 5th gear).

F10 35 Hz Vibration damper (Installed on the rear anti-roll sway bar) 3350 6 852 835
F30 40 Hz Vibration damper (Installed on the rear differential final drive) 3317 6 850 212
G30 42 Hz Vibration damper (Installed on the rear differential final drive or rear sway bar) 3350 6 861 489

Restrictions & limitations

8th gear not displayed in E60 instrument cluster

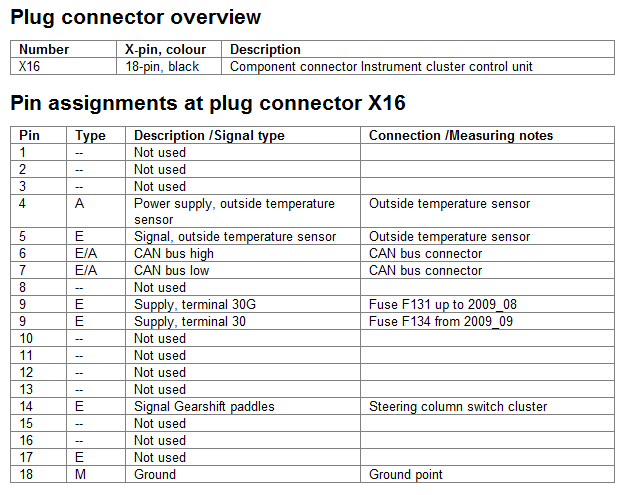

The 8th gear not displayed in the E6x LCI instrument cluster (Kombi60), even with the latest firmware. only 1 to 7, as its firmware does not understand 8th gear CAN data frame. Surprisingly, the E70 cluster (04.2009+ 6210.9.236.810) is able to display the 8th gear.

Workaround 1: would be to fit a cluster from a petrol 8hp powered E70. The housing and mountings are the same.

The Cluster mileage and VIN must be matched to the car, then match-coded to the car (replicate the coding of the E60 cluster _VO, Variables_ onto the E70 cluster) and deactivate the following variables:
Deactivate: EMF_ID_MONITOR (Monitor Electronic parking identification) Deactivate: EMF_ALIVE_ZAEHLER (Electronic parking alive counter)

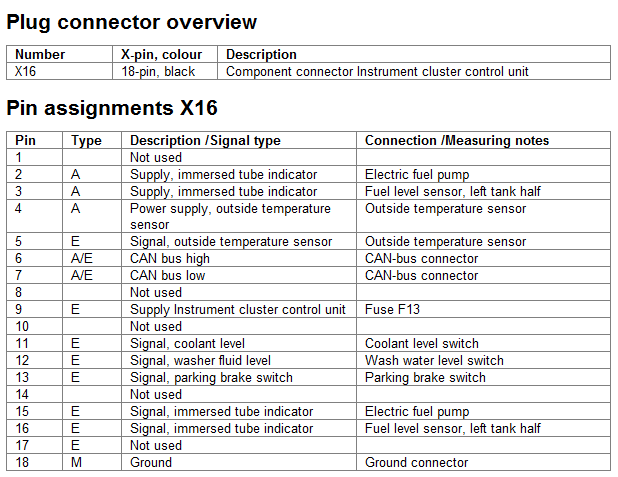

The drawback of this workaround is that the E70 cluster does not read some data like coolant level, Washer fluid level, parking brake switch state and fuel level as the wiring is different.

In The E60 the above data goes directly to the cluster while in the E70, it goes to the junction box and then gets processed back to the cluster via CAN protocol

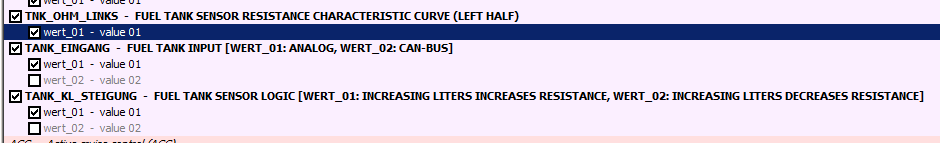

Notice the fuel tank input for the E70 is coded as CAN-BUS while for the E60 it is coded as ANALOG:

TODO: figure out how to simulate the E70 JBE module fuel level signal conversion or whether only proper coding could solve it

Option 2: CANChecked and AK Motion data displays claim to display transmission gear from Can BUS
XHP Flashtool Maps not supported

XHP Flashtool OTS maps cannot be flashed to the retrofitted 8HP out of the box.
In order to do so, a secondary CAS3 ECU cloned to the original vehicle CAS and edited with the VIN of a 8HP45 equipped E70 N55 is needed. A custom tune from XAutomotive may be possible in the future though.
If XHP path is not feasible, requesting OTS Maps from StageX company is another option

If StageX/WinOLS combo pathh is not feasible, requesting a Stage1/2 from Stagex-performance company may be a another option
Cruise control not supported in 8th gear

Cruise control gets deactivated automatically and errors logged, once the transmission shifts to the 8th gear. Again, it is firmware related. DME MSV80 interfacing with DSC ECU lacks the implementation/coding to understand the 8th gear data frame format. (Unlike MSV90 and MEVD1724/6)
